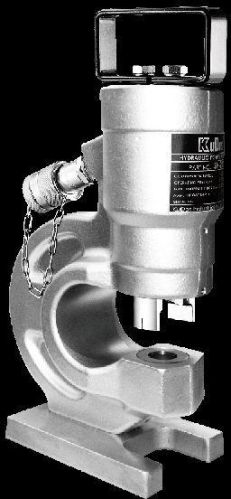

Kudos Hydraulic Puncher

Punching capacity
Max. Thickness :
Steel Plate : ≦10 mm
Copper Plate : ≦20 mm
Aluminum Plate : ≦20 mm
Max. Diameter : 20.5 mm
20.5 mm diameter hole with 10 mm thick mild steel.
For angle iron, plates, beams and bus bars.

Specifications :
Throat Depth : 70 mm
Max. Pressure : 700 bar
Oil Required : 116 cc
Max. Output : 31 tons / 305 kN

■ Punching capacity
Max. Thickness :
Steel Plate : ≦10 mm
Copper Plate : ≦20 mm
Aluminum Plate : ≦20 mm
Max. Diameter : 20.5 mm
20.5 mm diameter hole with 10 mm thick mild steel.
For angle iron, plates, beams and bus bars.

■ Features :
C-Head made by forging for greater strength.
Convenient handle for easy carrying.
Base stand for easy positioning and accurate punching.
Single action piston / cylinder arrangement reduces iron chippings.
Punch and die changeover tools included.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Efficient and safe to use.

■ Accessories :
Round Punching Dies for mild steel (10.5, 13.5, 17.5, 20.5 mm)
Hand Pin, 4 mm T-type Wrench
