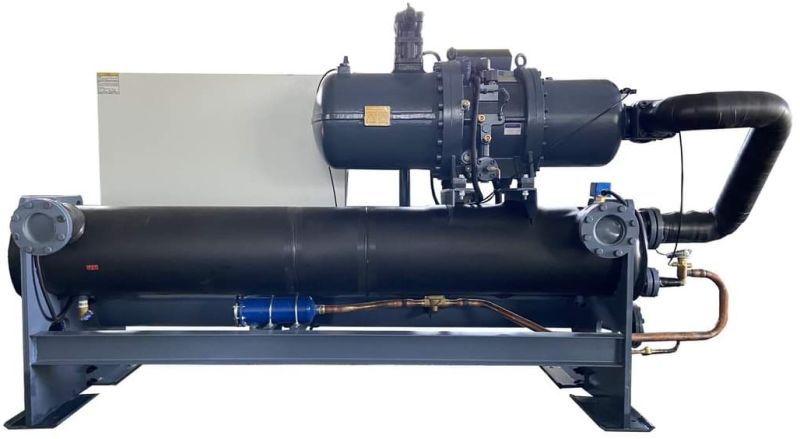

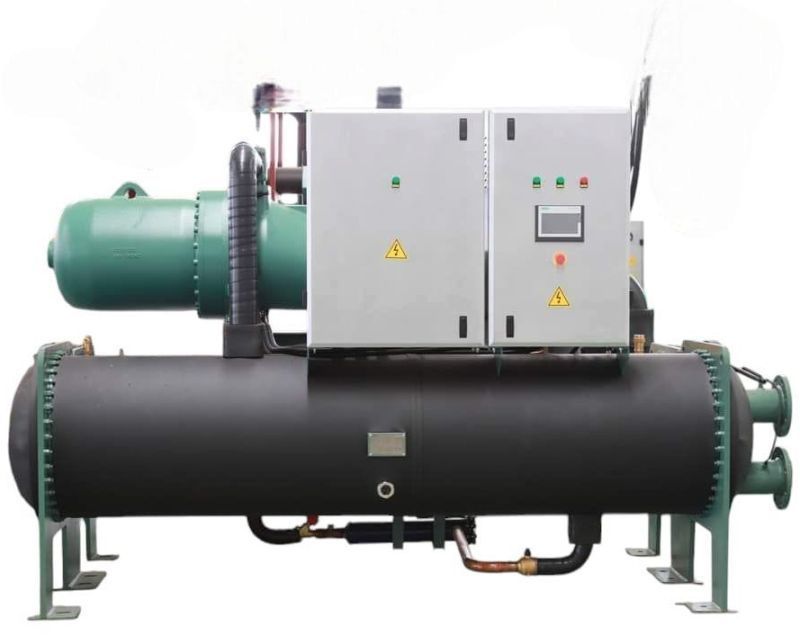

Mild Steel 130 TR Water Cooled Screw Chiller

Sr.No.

Parameter

Details

1

Model

FMACS-130TR-407

2

Cooling Capacity

130 TR/464 kw

3

Refrigeration circuit

1

4

Power Supply

400V-50Hz

5

Connecting load

92.5 KW / 154.8A

6

Refrigerant

R407C

7

Refrigerant Control

Thermostatic Expansion

8

Evaporating SST

5°C

9

Condensing SDT

35°C

10

Ambient Temp

48°C

11

 Working Temperature Range

+7 TO +20

12

Chilled Flow Of Water

78000 LPH , ΔT 5°C

18

Compressor Types

Screw

19

Compressor Qty

1

20

Compressor power

92.5 KW / 154.8A

21

Start mode

Regular

22

Capacity control

0,25,50,75,100 %

23

Evaporator Types

Shell and tube

24

Evaporator pipe connection

4”

25

Evaporator Shell MOC

MS. Powder Coted

26

Evaporator MOC

Copper and SS-304

27

Condenser  types

Shell and tube

29

Condenser Supporter

Galvanize

31

Safety Protection

Inner Thermostat for compressor motor, unit overload relay, high and low pressure switch , reverse phase protection relay, discharge gas thermostat, flow switch , Antic Freeze protection

32

Electric control panel

Controller, protection relay, contactor, MCB, preventer, timer.

33

Dimension(length/width/height)

After confirmation we will provide dimension and drawing -
