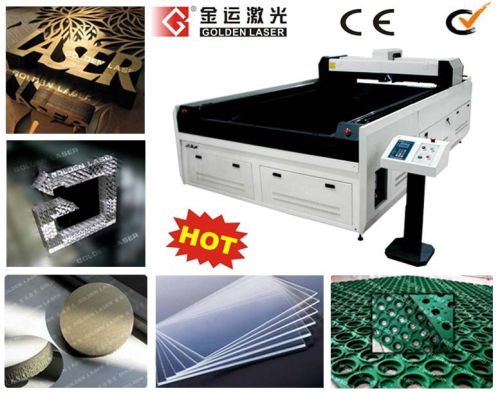

1350x2000 MDF Plywood Laser Cutting Machine

CJG-135200DT/CJG-130250 DT CO2 Laser Machine For Cutting Non-metal Materials
GoldenLaser-CO2 Laser Cutting Machine Features:
1. Elegant exterior design. Steel girder welding structure, solid and reliable working table. Large format working area, high speed, high precision and wide range of application.
2. Optimized process area and wide application meet the requirements for various laser processing technics.
3. With the world’s top USA II-VI laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable. Optical losses in the transmission process minimum to avoid the problems of large attenuation of laser cutting power.
4. This equipment uses South Korea patented high speed linear motion guide rail. Rail can be adjusted to ensure the accuracy after some time of movement. Our slider is also imported from Korea. The size is adjustable while using.
5. Complete exhaust and filtering system. There are a variety of input methods, such as USB flash disk, USB cable transmission and Cable connection. Easy to use. One computer controls multiple laser machines for cost saving.
6. For software, all using professional cutting software (independently researched and developed by GoldenLaser). It is compatible with CAD, BMP, CorelDraw, DST, PLT and other related software. It combines graphics layout and control output in one. Unique design, friendly interface and easy to use. And you enjoy permanent free upgrades of the software.
CO2 Laser Machine Applications:
Applicable Materials: Acrylic, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Wood, Balsa, Plywood, MDF, Glass, Organic Glass, ABS, Paper, Paperboard, Cardboard, Leather, Marble, Bamboo, Rubber Sheet, etc.
Applicable Industries: Advertising, Signs, Signage, Sign Letters, Advertising Letters, LGP, Photo Frame, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Models, Architectural Models, etc.
Laser Cutting Machine Specifications:
Half Flying Optics
Standard Working area:1300mm*2500mm
More Cutting Size: 1000mm×600mm / 1300mm×900mm / 1300mm×1600mm / 1500mm×2500mm / 1350mmX2000mm
Working table: Strip working table.
Laser type: Hermetic and detached CO2 laser tube or RF metal laser tube
Laser power: 80W, 130W (glass tube) or 100W, 150W (RF metal tube)
Cutting speed: 0-30000mm/min
Repeating location: ±0.1mm
Cooling mode: Constant temperature water cooling chiller
Controlling system: offline servo control system
Moving system: synchro belt moving technology
Focus lens: 50.8mm (63.5mm, 76mm, 101.2mm for option)
All lens and mirror are all from American company II-VI
Air blow: normal air blow
Top Exhaust: attached to the lens mount
Bottom Exhaust: following exhaust system
The bottom exhaust is fixed under the laser head and move together with the laser head
Electricity Requirement: AC220V+-5%, 50HZ
Format support: AI, BMP, PLT, DXF, DST
Standard collocation: Following top & bottom exhausted system, medium pressing exhaust device, 550W exhaust fans, mini air compressor, water chiller
Laser Cutting Machine Software Presentation:
A). Our software is compatible with BMP, AI, PLT, DST, DXF formats;
B). Seamless connection process for different designs from CorelDraw, AutoCAD.
C). Offline control and large memory for data storing, realize the offline control and batch of production work;
D). One computer control multi-machines for decreasing the invest costing and labor force.
