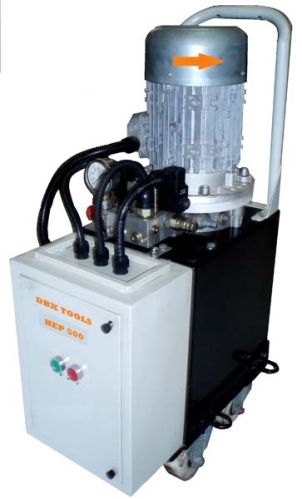

Contact SupplierFor Hydraulic Tube Expansion System (Hydex) at industry-leading rates, you can completely rely on us. We are an eminent Manufacturer, Supplier and Exporter of Hydraulic Tube Expansion Systems from Maharashtra. Our Hydraulic Tube Expansion Systems are compact and thus easy to use inside boilers. The Tube Expansion Systems offered by us require very low maintenance. One can obtain the Tube Expansion Systems at affordable rates.
Features :
Hydraulic Pump Models | |||
HEP-300 | HEP-500 | HEP-1000 TWIN HEAD | |
Oil Tank Capacity (Litres) | 30 | 45 | 138 |
Hydraulic Oil | SAE VG 68 | SAE VG 68 | SAE VG 68 |
Maximum Working Pressure ( bar) | 100 | 100 | 100 |
Net Weight ( kgs) | 80 | 100 | 220 |
Overall Dimensions (mm) | 610 x 270 x 985 | 820 x 320 x 985 | 1775 x 550 x 1200 |
Electric Motor | 3 hp. Single phase | 5 hp. 3 phase | 10 hp. 3 phase |
Voltage | 230 v / 110 v | 415v | 415v |
Standard Hose Size (Length) | 1/2” (10 mtrs.) | 1/2” (10 mtrs.) | 1/2” (10 mtrs.) |
Tube Expansion Range | Drive | Drive No Load Speed (RPM) |
Drive Weight Kgs. | ||||
Steel Tube O.D. | Copper Tube O.D. | Model No. |
Square Socket Inch |
With HEP-300/500/1000 | |||
mm | inch | mm | inch | ||||
15 - 25 | 5/8 - 1 | 25 - 38 | 1-1.1/2 | HED-3 | 3/8 | 620/954/800 | 9.6 |
19 - 38 | 3/4 - 1.1/2 | 32 - 64 | 1.1/4-2.1/2 | HED-4 | 3/8 & 1/2 | 350/480/400 | 9.7 |
38 - 76 | 1.1/2 - 3 | 50 - 102 | 2-4 | HED-5 | 1/2 & 3/4 | 62/84/70 | 11.0 |
50 - 102 | 2 - 4 | - | - | HED-6 | 3/4 & 1 | 40/62/54 | 11.5 |
Model No. | Hose Power |
HE/HS/1210/2 | 2 x 1/2” x 10 |
HE/HS/5815/2 | 2 x 5/8” x 15 |
HE/HS/5820/2 | 2 x 5/8” x 20 |
HE/HS/1210/4 | 4 x 1/2” x 10 |
HE/HS/5815/4 | 4 x 5/8” x 15 |
HE/HS/5820/4 | 4 x 5/8” x 20 |
Model No. | Supply Cable Length |
HE/SC/15 | 15 |
HE/SC/20 | 20 |
HE/SC/25 | 25 |
