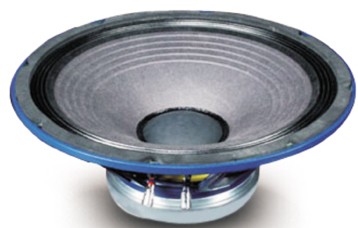

15 Inch Subwoofer Speaker

₹ 90 / 50 50 Piece

MOQ50 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

General Specifications: Nominal Diameter:15 inch Rated Impedance:8 Ohm Power Handling Capacity:350 Watts Sensitivity 1W,1M:98.8dB Effective Pistion Diameter:330mm Voice Coil Diameter:75.5mm 3....

Company Information

Member Since 14 Years
Nature of Business Supplier
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

General Specifications:
Nominal Diameter:15 inch
Rated Impedance:8 Ohm
Power Handling Capacity:350 Watts
Sensitivity 1W,1M:98.8dB
Effective Pistion Diameter:330mm
Voice Coil Diameter:75.5mm 3 Inch
Parameters
Resonance Frequency: 39 Hz
DC Resisstance:5.2 Ohm
Mechanical Q Factor:5.9
Electrical Q Factor:0.28
Total Q Factor:0.26
BL Factor:18.5 TM
Effective Moving Mass:75 gr
Equivalent Cas Air Load:228 Liters
Effective Piston Area:0.085㎡
Half-Space Effciency:4.7 %
Top Palte Thickness:10 mm
Voice Coil Height:15.0 mm
Voice Coil Over-Hung:2.5 mm
Physical Information:
Basket:Aiuminium
Magnet Type,Size OdxIDxH(mm):190x85x20 Ferrite 80oz
Voice Coil Former:Kapton 400℃
Voice Coil Material:Copper Wire 300℃ Cone
Cone Material:Pulp Paper
Surround:Treated Cloth
Spider:Cotton Blen Polyester
Dust Cap:Pulp Paper

Additional Information

Payment Terms T/TWestern Union
Port of DispatchGuangzhou
Packaging Detailspacked with cardboard to protect the speaker,outside pack with carton box
Delivery Time10-15days
