Type of Pattern
Right Angle Pattern
Pressure / Class Rating
PN-16
Body Material Cum Standard
Cast Iron (IBR 86 to 93 Gr. A)
Product Description

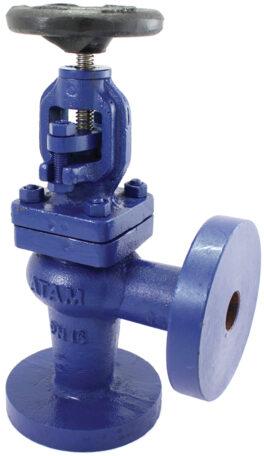

Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem with Backseat Arrangement, Handwheel Operated
Type of Seat
Renewable Seat
Type of Disc
Renewable Disc
Trim
13% Cr. (SS 410)
End Details
Flanged Drilling as per BS-10 Table-H Raised Face (PN-16)
Test Pressure
Body: 24 kg/cm² (Hyd.), Seat & Back Seat : 17.6 kg/cm²
Max. Working Pressure
13 kg/cm² (Steam)
Max. Working Temperature
220°C
Notes
