15" Open Frame Industrial Panel PC

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The 15" Open Frame Industrial Panel PC is made of strengthened glass and it has XGA TFT LCD panel support in AC 100-240V. With a resolution of 1024×768 pixels, the 15" Open Frame Industrial....

View More Details

Send Enquiry

Company Information

Air Fly Softwares

Saidapet, Chennai, Tamil Nadu

View Number

Member Since 12 Years
Nature of Business Retailer
Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

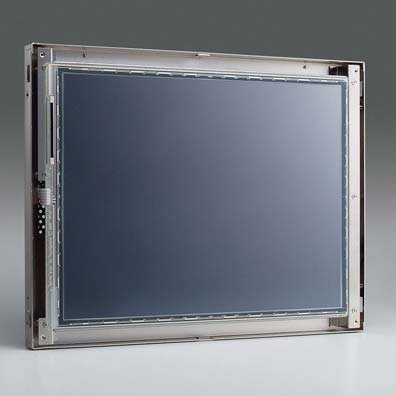

The 15" Open Frame Industrial Panel PC is made of strengthened glass and it has XGA TFT LCD panel support in AC 100-240V. With a resolution of 1024×768 pixels, the 15" Open Frame Industrial Panel PC has an input signal of VGA + Audio and OSD control keys for optimized display. The 15" Open Frame Industrial Panel PC has built-in 2×2W stereo speakers and they also have high brightness of 250 cd/m2 as well as VGA and DVI. There are optional audio and touch screen features as well as an external AC adapter, and the 15" Open Frame Industrial Panel PC can be supported by desktop stand, wall mount, and swing arm mounting as well as panel mounting with clip. The 15" Open Frame Industrial Panel PC also meets the VESA hole standards (75×75 and 100×100 mm).

Specifications

LCD Panel	Display Type : 15" XGA TFT LCD Resolution : 1024x768 Max.color : 16.2M Luminance : 250 cd/m² View Angel : 150^o(H) , 135^o(V) Pixel Pitch : 0.297 x 0.297 mm Contrast Ratio : 700 : 1 Response Time : 8 ms Power Consumption :11.27W LCD MTBF : 50,000hrs
Signal input	VGA ( 15 pin D-sub connector ) + Audio input ( audio jack )
Protect glass	3 mm strengthen glass
OSD	Brightness, Contrast, H/V Position, Color, Phase, Clock, auto tune and recall
Touch Screen ( optional )	Internal USB or RS-232 interface controller Type : Analog Resistive type : 25VDC ≥ 20MΩ Resolution : continuous Light transmission : 80% or more Power consumption :<5V @1mA Surface hardness : 3H Operating force : ≤100g Life expectancy : 35 Million Operation system : Window 98 / 2000 / ME / XP / NT / CE, DOS , Linux
Signal connectivity ( optional )	AV input (RCA)
DC power input ( optional )	Wide range DC 8V-30V input
Power Supply	Input : 100~240VAC,50/60Hz Output : DC12V@ 4A /48W ,external ac adapter
Construction	Heavy duty steel
Environment	Operating temperature : 32^oF~113^oF (0^oC to 45^oC) Storage temperature : -4^oF~140^oF (-20^oC to 60^oC) Storage humidity : 10% to 95%@ 40°C, on-condensing Vibration : 10 ~ 150Hz, 0.15mm 10 cycles 1G Shock : 30G peak acceleration (11 msec. duration)
Safety	CE/FCC/Rohs
Dimension W x H x D ( mm )	Dimensions : 378 x 295 x 50mm Packing Dimension : 520x180x 430mm
Weight ( kgs )	NET weight : 5.6KG Gross weight : 6.5KG
