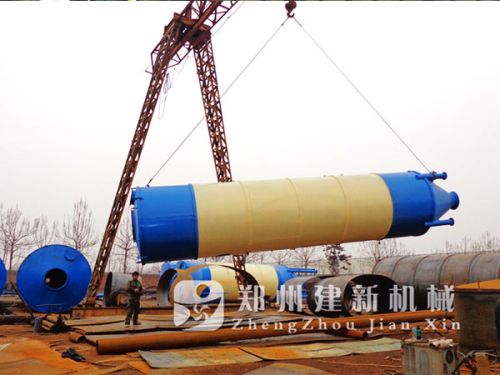

150 Ton Bulk Cement Silo, Brand Name : Jianxin

cement silo of cement mixing plant:
1. 100 tons cement silo is suitable for in engineering construction, commodity concrete mixing station, road and bridge water conservancy project, urban construction and other projects. with features of waterproof, moisture-proof, prevent cement loss, reduce dust pollution in urban air, small footprint, long service life, low cost and so on.
2. it consists of steel structure part, ladder, guardrail, feeding pipe, dust remover, pressure relief valve, high and low level gauge, unloading valve and so on.
3, the bulk cement silo is cylindrical structure, the bottom is supported by four round pipe supporting legs, the whole warehouse is all steel structure form, and be well welded; the top is equipped with dust remover and pressure relief valve.
4. working principle of cement silo:
1, when working, must be set up by the special crane, and then put on the prefabricated concrete foundation, and check the 100 tons of bulk cement silo erected after the verticality and the horizontal plane, and then the base and foundation embedded solid welding.
2, fixed storage after delivery to the site by the cement bulk cement truck, and then the delivery pipe and the bulk cement silo in the bulk cement truck and the feeding line of cement, gas pressure through the bulk cement vehicle tank cement transported 100 tons of bulk cement silo.
3, in the process to transport cement storage silo, operator continuous press the button of dust catcher vibration motor, shake off the dust bag attached to the cement, preventing bag blocking, warehouse explosion occurred.
4, once the bag is blocked, cabin pressure exceeds the top pressure of the safety valve safety pressure, pressure relief valve can be opened to release the pressure in the bin, to prevent the occurrence of explosion accident.
5, the warehouse full and lack of material conditions can be observed through the high and low level.
