GENERAL INFORMATION | |

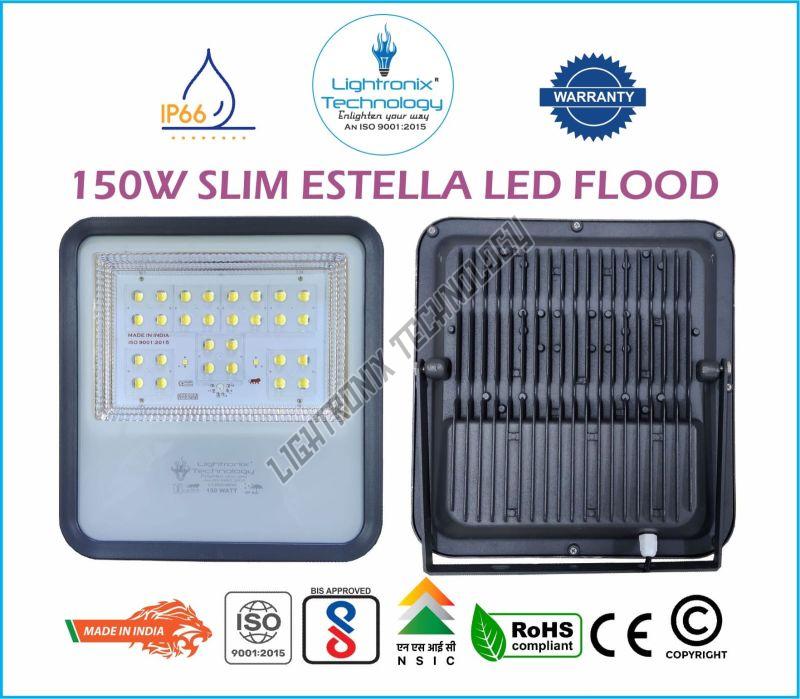

Order Code | LT-150WFL-SLIM-ESTELLA |
Make | Lightronix Technology |
Country of Origin | INDIA |
Lighting Source & Type | SMD 5050 LED |
Number of LED | 30 |
OPTICAL PARAMETERS | |
Led Beam Angle | 30,45,60 or 90 degree Polycarbonate lens |
CRI (Color Rendering Index) | >80 |
LED Life Span | >60000 Hours |
Color | White/Warm White/Cool White (As Per Order) |
Color Temperature | 2700-6500K(As Per Order) |
Led Voltage/Current | 6.2V/750mA |
LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
Optical Lens | 30,45,60 or 90 degree Polycarbonate lens |
Luminous Efficiency | 170 Lm/W |
Total Lumens | 25500(±5%) |
Optical Efficiency | >93% |
Thermal Efficiency | >90% |
ELECTRICAL PARAMETERS | |
Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
Operating Frequency | 50/60HZ |
Power Consumption | 150 Watt |
Power Factor | >0.95 |
THD | 90% |
Supply Phase | Single Phase Supply |
Over voltage Protection | 440VAC Protection |
Under voltage Protection | 90VAC |
Auto cutoff Voltage | Lower Side310VAC |
PCB INFORMATION | |
PCB Thickness | 1.6mm(±5% Tolerance) |
PCB Material | Pure Aluminum-Copper |
Copper Layer Thickness | Standard 0.35 Micron |
Copper Conductivity | >1 Watt |
PCB Size | 230x152 mm |
MECHANICAL PARAMETERS | |
Housing Material | Aluminum Pressure Die Casting |
Housing Color Type | Metal Powder Coated |
Housing Shape | Rectangle |
Total Luminaries Weight | 3.800 Kg |
Luminaries Size | 343 × 323 × 80 mm3 |
Mounting Device | Bracket |
Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
Glass Type | 4mm Toughen Glass |
Glass Size | 300x321 mm² |
Cable Entry Option | PG7 Cable Gland with Rubber Washer |
Screw Type | Stainless Steel Screw |
Gasket Type | Silicone Rubber Gasket |
IP Rating | IP65/IP66 |
Impact Rating | IK08/IK10 |
Marking Type | |
