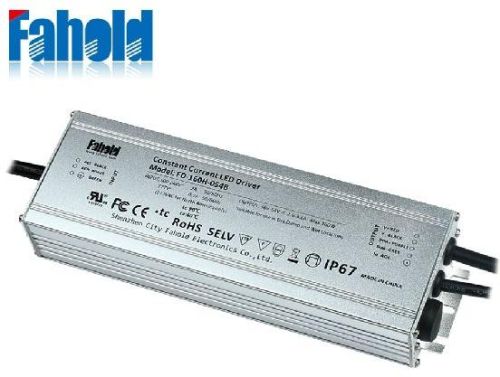

150W LED Linear High Bay Power Supply

FD-160H-054B Feature IP67Max output power 160W.Constant current design. 3 in 1 dimming mode:0‐10V,PWM,RX. Smoothly dimming(0‐100%),can dim to off.TUV CB CE UL FCC Certified.PROTECTION:Short Circuit,Open Circuit Application Street lights.High bay lights.  LED Advertising Sign,LED Architectural Lighting,LED Commercial Industrial Lighting,LED General Luminaries,Commercial Led Wall Lights. Introduction The document detail the electrical, mechanical and environmental specifications of a 160W constant current LED driver with 0-10V Dimming. This LED drive power supply is suitable only for LED load. Model Wattage(W) Output volgag(V) output current(A) Efficiency(%) 100V FD-160H-038 BCD 160 24-38 2.50-5.00 89 FD-160H-042 BCD 160 30-42 2.30-4.40 90 FD-160H-054 BCD 160 36-54 2.00-3.60 90 FD-160H-076 BCD 160 45-76 1.30-2.75 91 FD-160H-143 BCD 160 72-143 0.70-1.40 90    Note    Optional letters A, B, C, D or empty, indicating that the output increases with different optional functions. The default space indicates no other optional function (basic model); A letter indicates that the aluminum shell with three-in-one dimming, B letters that three-in-one dimmable light and fine-tuning current, C letters that plastic shell with three A dimming, D letters that plastic shell base models (no dimming function) Input characteristics   Input Voltage 100-277Vac Input Frequency 50-60Hz Input Current (Typ.) 2A . @ 100-277
