Contact Supplier[ Physical Characteristics ]

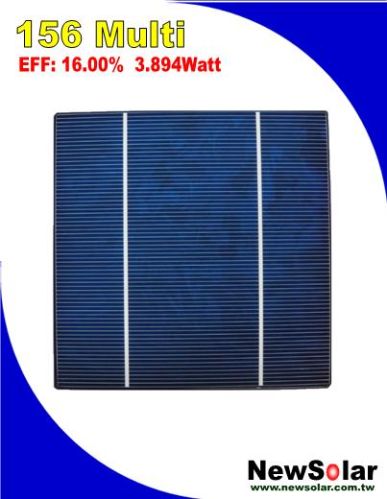

Dimension: 156mm x 156mm +/- 0.5mmThickness: 220 um +/- 40 um
Front Side(-): Blue Antireflective Coating (silicon nitride), Texturized Surface (acid),Two 1.8 mm Bus Bars (silver)
Back Side(+): Full-Surface Back-Surface Field (aluminum),
3.5mm wide Soldering Pads (silver / aluminum)
[ Electrical Characteristics ]
Efficiency Range: 16.0%
Pmax (w): 3.894w
Voc (V): 0.611
Isc (A): 7.78
Vm (V): 0.499
Im (A): 7.22
[Temperature Coefficients]
current(mA/K): 4.40Volatge(mvK): -2.15Power (%/K): -0.46
