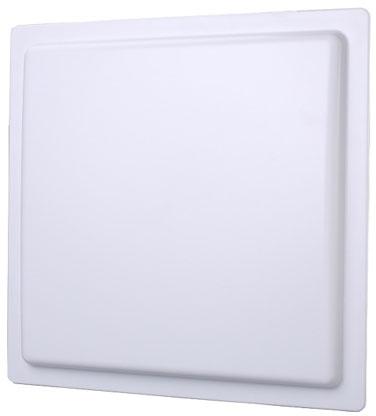

15m Long Range Access Control UHF Wiegand26 RFID Integrated Reader

We are offering
FEATURES
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868,902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 12dbi antenna optional with effect distance more than 15m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, Wiegand2634;
10. Provide SDK and Demonstration Software Source code to facilitate further development.
Specification
Model: ZK-RFID102
Protocol: ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Work Frequency: ISM 865-868MHz, 902~928MHz
(can be customized)
Frequency Hopping: FHSS or fixed frequency
Power Output: 0~30dBm(adjustable)
Antenna: Built-in 12dBi linearized polarized antenna
Interface: RS232, RS485, wiegand 2634 (TCPIP, Wifi can be customized）
Reading Mode: Multi-Tag Reading
Operating Mode: Answer, Active, Trigger
Read Range*: 0~15m
Write Range*: 0~6m
Reading Clue: Buzzer
Input Power: 100~240V,DC+9V (Power Adapter)
Dimension: 445*445*65mm
N.W: 2600g
G.W : 5000g
Operation Temp: -25°C~+60°C
Storage Temp: -25°C~+80°C
Humidity: 80%
Additional services: Provide Demonstration software and SDK for further development
Application
It can be widely applied in many RFID application systems such as parking lot, logistics, access control, and anti-counterfeit and industrial production process control system.
