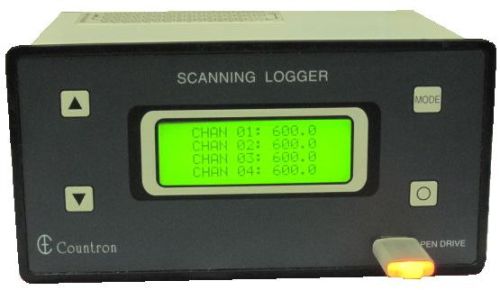

Countronics 16 Channel Temperature Scanner Logger for Industrial

₹ 15,000 / piece

Brand NameCountronics
Power SourceElectric
ConditionNew
ApplicationIndustrial
Supply TypeManufacturer
Preferred Buyer Location India only

Company Information

Member Since 1 Year
Nature of Business Manufacturer
GST No. 09AABHD8394P1ZI

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameCountronics
ConditionNew
Power SourceElectric
ApplicationIndustrial
RangeJ-T/C: 0 to 750 ̊C, K-T/C: 0 to 1250 ̊C, R-T/C : 0 to 1700 ̊C, PT100: -100.0 to +600.0 ̊C
Mounting TypePanel Type
Front Facia96mm x 192mm
ChannelsMaximum 16
Display4x20 line 0.3” character height alphanumeric LCD module display
Resolution1 ̊C for thermocouples and 0.1 ̊C for PT100
Power Supply230V AC ± 15% at 50/60Hz
SensorJ/K/R Thermocouples and 3 wire PT100 sensor user selectable
Logging Rate1 second to 99Mins59seconds

Backed by our prime motto to provide our clients with best in class products in a stipulated time frame, we have emerged as a superior manufacturer and trader of a wide gamut of 16 Channel Temperature Scanner Logger. These loggers are manufactured under the strict supervision of our competent manpower. Also, our range of 16 Channel Data Logger is widely appreciated for attributes such as data saved directly on USB pen drive in an ms excel compatible file, no need of any complicated or additional software for managing data,etc.

Model code:CT716

Product Name:16 channel Temperature Scanner Logger

Category:data_logger

Sub Category:Data Logger

Features

Microprocessor based linearized for J/K/R Thermocouples and PT100 temperature sensors.
4 line alphanumeric LCD display with back-light for user friendly displays
Auto cold junction compensation for thermocouples and 3 wire input for PT100
Number of usable channels selectable from 1-16.
Auto/Manual mode of scanning selectable
Rate of logging settable by user in Mins:Secs
Digital offset user settable for individual channels
Internal Real Time Clock with battery backup for saving values along with Date and Time
Saving data on Pen drive allows a very large amount of storage space at very low cost.

Specification

Display	4x20 line 0.3 character height alphanumeric LCD module display
Sensor	J/K/R Thermocouples and 3 wire PT100 sensor user selectable
Range	J-T/C: 0 to 750C, K-T/C: 0 to 1250C, R-T/C : 0 to 1700C, PT100: -100.0 to +600.0 C,
Resolution	1C for thermocouples and 0.1C for PT100
Channels	Maximum 16
Scanning Rate	User settable from 1-99seconds
Digital Offset	User settable individually for each channel
Logging Rate	1 second to 99Mins59seconds
Data Logging	Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels
Real Time Clock	Adjustable Calendar (Month/Date) and Time (Hrs:Mins)
Accuracy	1C 1 for Thermocouples, 0.1C 1 for PT100
Power Supply	230V AC 15% at 50/60Hz
Front Facia	96mm x 192mm
