Steel 16 Spindle High Speed Braiding Machine, Brand Name : Dura

our factory’s 16 spindles high-speed braiding machine mainly used to produce round various rope, special band and shoelaces. This 16 spindles high-speed braiding machine has four head and can produce 4 laces on time.

advantages:

1. The base casting was machined in machining center after aging treatment to ensure the flatness.

 2.  the panel uses ductile iron 800, was machined in machining center after aging-treatment to ensure its precision and wearing.

 3. Core shaft rotor(impeller) uses ductile iron 600, firstly machined in the machining center, high-frequency treatment on its surface to enhance its hardness, then machined by the precision grinder.

 4. Tolerance of fit between spindle base and the impeller is controlled within 0.03mm.

 5. Rotor nylon pad was cast by nylon 66 with imported wearing-grease to make it last longer.

specification:

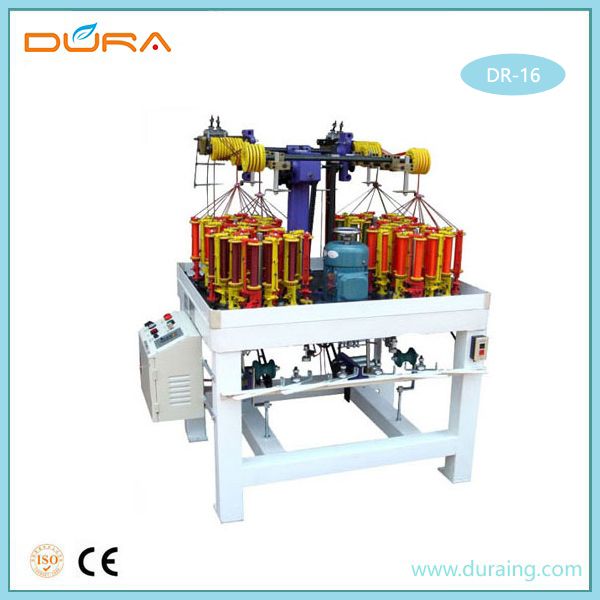

model: dr-16

machine size (mm):1100 x1000 x 1700

bobbin dimension:48*140mm

production heads:4

carriers per head:16

max. R.p.m.:300

motor power (kw):0.75

voltage:220/380/vac, 50/60hz

max. M.p.h:60 x 4

quality control: all the machines will be inspected carefully before delivery.

oversea service: we have agents in different countries, so oversea service is available.

certificate: ce

packing: the quantity under 10 sets packed in single wooden case, over 10 sets order will load in full container.

delivery time: order quantity smaller than 10 sets, delivery time is 20 days; order quantity over 10 sets, the delivery time is 30 days.
