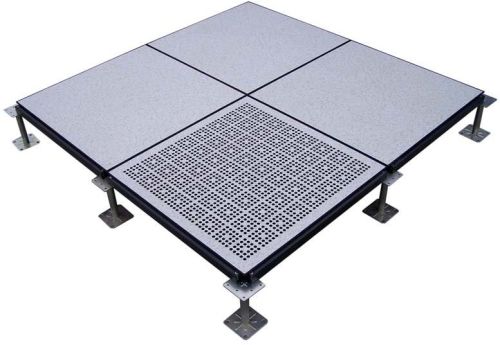

16% Ventilation Air Flow Steel Raised Floor System

Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Product Details

Fireproof, dustproof, high mechanical strength, high resistance to shock, strong bearing capacity, and the like attributes make our Air Flow Steel Raised Floor System the best deal available to the market. We are associated with the league of #1 Manufacturers, Exporters, and Suppliers of 16% Ventilation Air Flow Steel Raised Floor System from China.

Product Brief :

With wildly brand top tiles, such as PVC, HPL
Adjustable height for pedestal, assembly agility, large wire
High recycled, convenient removing, saving cost
Prevent static validly, fireproof, dustproof Material Full steel, HPL or PVC punched tile, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal stringer are pressured forming with steel, lead screw could adjust height.

Characteristics :

Prevent static validly; fireproof, dustproof
Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance
Except for other function, possess ventilation function
16%~65% ventilation rate, satisfies different environmental requirements on purge.
Also called air-flow raised floor,ventilation raised floor,perforated raised floor.

Range of application All manner of computer room, network service room monitor control center, electronic workshop clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.

Size : 600*600mm

Thickness : 35mm

Material : All steel

Details

International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m²)	Rolling load(N)
International	Size(mm)	Fire Performance	LB	N	KG	Impact load (N)	Ultimated load (N)	Uniform Load (N/m²)	10 times	100000 times
FS440	600x600x35	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1958	1566
FS662	600x600x35	A	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
FS800	600x600x35	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x35	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x35	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
