Contact JGHC team for specific product quotations. Discounts are available for large quantities.
As the main element of frequency control and selection, crystal resonators are used in control, communication, audio, data, network, radio, Wifi, BT, Zigbee and every PCB with a microcontroller/processor or transmitter/receiver.
When paired with a microcontroller, the external frequency signal provided by the crystal is more accurate and stable than the frequency signal provided by the microcontroller 's internal LC circuit.
This S16 series quartz crystal resonator has a wide output frequency range and high accuracy, suitable for wearable devices, mobile devices, wireless communications, IoT, etc.
Crystals specifications:
| ITEMS/TYPE | S16 |
| Frequency Range | 24~96MHz、76.8M、80M、96M |
| Load Capacitance | 8pF, 10pF, or specify |
| Frequency Tolerance (at 25°℃) | ±10ppm, ±20ppm, or specify |
| Frequency Stability Over Operating Temperature Range | ±10ppm, ±20ppm, or specify |
| Operating Temperature Range | -40-+85°℃, or specify |
| Shunt Capacitance (CO) | 3pF Max. |
| Drive Level | 1~200μW (100μW typical) |
| Aging (at 25°℃) | ±3ppm/year Max. |
| Storage Temperature Range | -40~+85℃ |

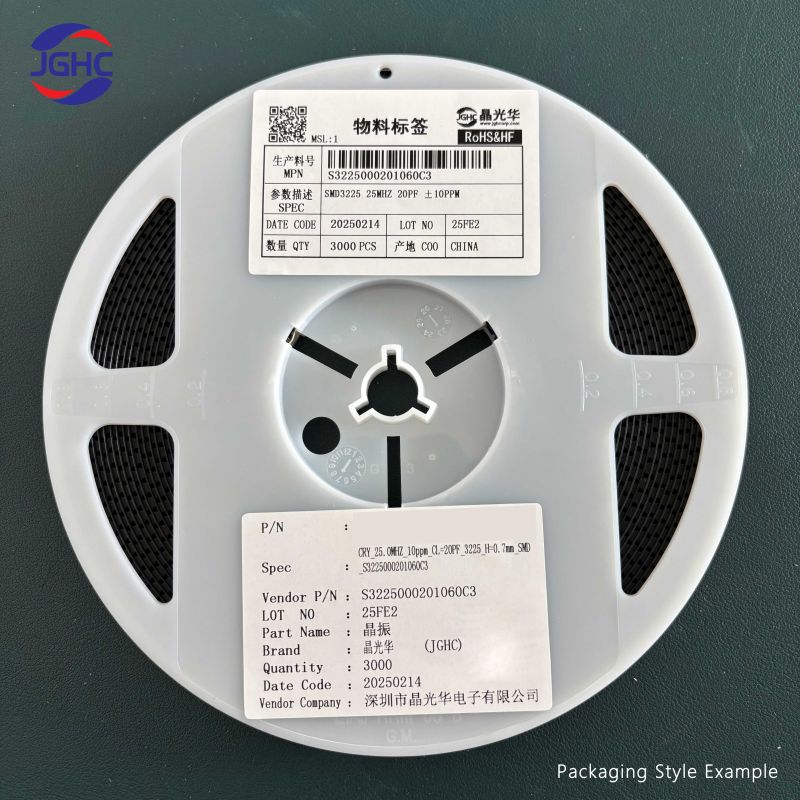

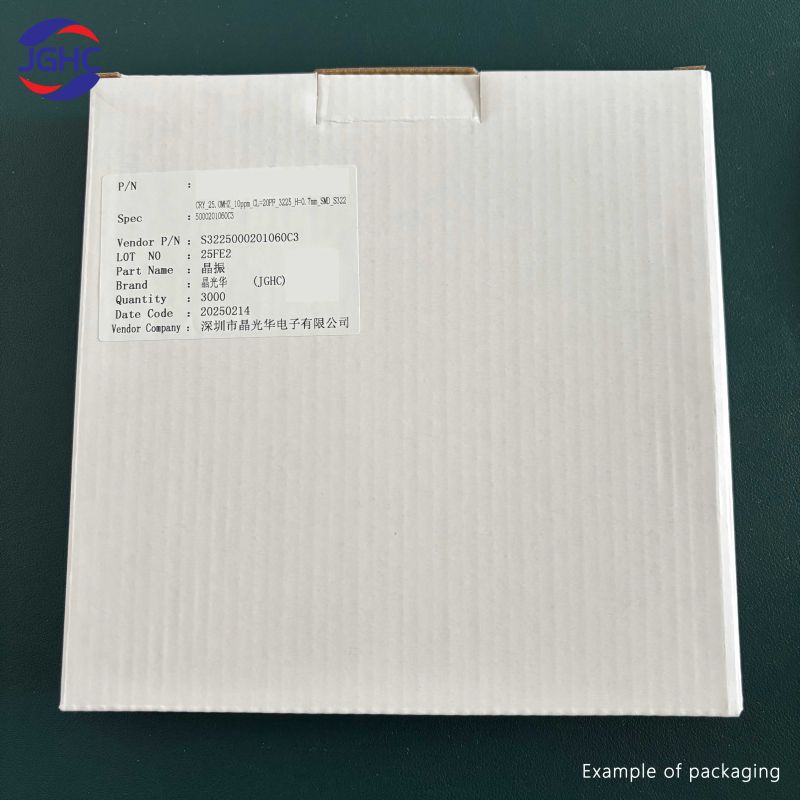

| Packing Unit | 3,000pcs/Reel |
