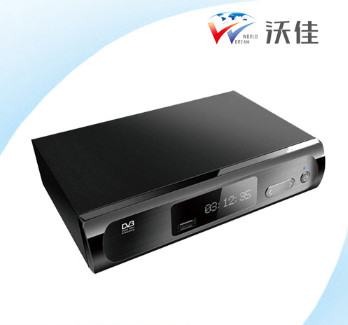

168 Mm DVB-T2 TV Tuner Set Top Box Mini Dvb -T2

Front panel 4-digit led display on front panel
red led standby on front panel
usb 2.0 embedded one host
panel key, power, ch+ ,ch-
rear panel
tuner rf input connector iec-162-2( female)
tuner rf loop through connector iec-162-2( male)
rear panel hdmi v 1.31.4
ypbpr rcax1
coaxial x1
rca cvbs al ar connector x1
power ac100~240v 50hz60hz
demodulation
demodulation terrisal receiver standard
isdb-t broadcast (1, 3, 13 segment)
input rf frequency
48~866mhz
bandwidth
6mhz,7mhz,8mhz
constellation
qpsk 16-qam 64-qam and 256-qam
fec
12, 35,23, 34,45,5678 automatic
fft mode
2k 8k32k
input level: -83 - -5dbm
software features
fully comply with dvb-tt2 and h.264, mpeg-4, mpeg-2 standard
the maximum speed of the traffic flow of at least 50 mbit sec
support 3d interface
support teletextsubtitlemuti-language
powerful and highly effective 7-day epg function
auto, 16:9 pillar box, 16:9 pan g scan, 4:3 letter box, 4:3 pan g scan, 4:3 full, 16:9 wide screen
decoder
video decoder compliant with: mpeg-4 part10mpeg-2 isoiec 13818
mpeg-4 simplemainadvanced profile@level3(10mbps)
mpeg-2 main profile# main level(15mbps)
h.264 mp#l3(10mbps).h.264 hp l4.1(25mbps)
audio decoder mpeg-1, mpeg-2 (layer iii), mp3, ac-3 (dolby digital), aac-lc, wma
e-ac-3 (dolby digital plus) decoding he-aac 5.1 multi-chhannel decoding
powerful multimedia features
mediacodec avi. Mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
audio codec
wma,mp3,aac (.wma,.mp3,m4a)
photo codec jpeg, bmp, png
multimedia license
optional dts, dolby digital, dolby digital plus, rmrmvb, divx license
