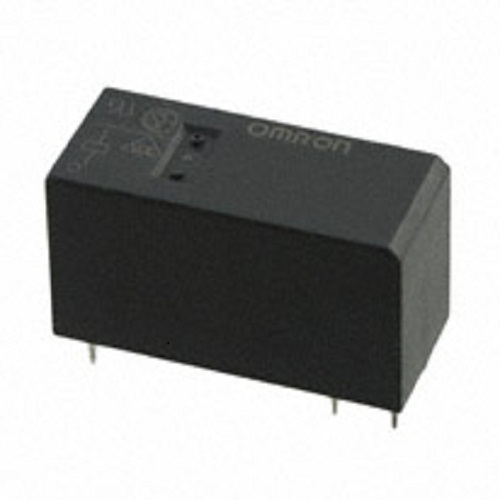

Contact Supplierwe have 16A, 12VDC SPST-NO Omron General Purpose Relay - G2RL-1A-E-DC12
Features of General Purpose Relay :-
Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¢ A wide variety of single pole, double pole, high-capacity (16 A) type and high-sensitivity type (250 mW) Relays are available.
Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¢ Low profile; 15.7 mm max. in height.
Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¢ Clearance and creepage distance: 8 mm / 8 mm min.
Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¢ Coil insulation system: Class F (UL1446).
Applications of General Purpose Relay :-
Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¢ Home appliances Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¢ OA equipments Ã�¢Ã¯Â¿Ã‚½ÃƒÃ¯Â¿Â½Ãƒ‚¢ Industrial machinery
Descriptions:-
Relay Type: General Purpose
Coil Type: Non Latching
Coil Current: 33.3mA
Coil Voltage: 12VDC
Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 16A
Switching Voltage: 440VAC, 300VDC - Max
Turn On Voltage (Max): 8.4 VDC
Turn Off Voltage (Min): 1.2 VDC
Operate Time: 15ms
Release Time: 5ms
Features: Insulation - Class F, Sealed - Flux Protection
Mounting Type: Through Hole
Termination Style : PC Pin
