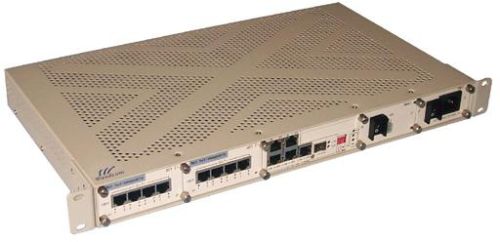

16e1 Over Ethernet Multiplexer, Brand Name : Baudcom

We are offering 16e1 over ethernet multiplexer.
baudcom's 16e1 over ethernet multiplexer (16e1 tdm over ip) supports transportation of 16 e1t1s over 5 ge (gigabit ethernet) ports and 1 ge optical port(sfp slot).the tdmoip device can support e1 and t1,web management.
overview:
as a cost effective solution for the traditional telecom services migrate to the ip packet networking technology, the 16 e1 over ethernet (e1 over ip) adopts the innovative tdm over ip technology, with ip circuit emulation that supports transportation of 8~16 e1s and 5 ge electrical ports and 1 ge sfp optical port. The uplink ports and user data ports are ieee 802.3 compliant, 101001000m auto-sensed ethernet ports.
state-of-the-art design provides the highest availability with the accurate timing signal and data bit stream reconstruction. Predefined system parameter profiles that according to different application requirement; ultimately simplify the installation process and saving the maintenance cost.
the 16 e1 over ethernet ( bd-16e1-ip) could work together with other members in baudcom tdm over ip family such as the 8 e1 over ethernet (bd-8e1-ip), 4 e1 over ethernet (bd-4e1-ip) ,2 e1 over ethernet (bd-2e1-ip), single e1 over ethernet (bd-e1-ip) etc. To run legacy e1 services. Telecom and enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of services over their packet-switched infrastructure. It is also suitable for connecting to the wireless equipment to achieve fast deployment of e1t1 services. One particular application is to build e1t1 links with low cost wireless lan bridges, replacing much more costly microwave radios. Operators can use baudcom tdm over ip devices to provide legacy tdm services over wired or wireless ethernetip network.
features
1. support ietf rfc4553 satop protocol, ethernet encapsulation support ipudp.
2. provide 4 fe electrical ports and 1 fe optical port, 2 uplink ports, 2 local data ports or monitoring ports, optical port can be used for uplink or local data.
3. user-friendly web server supported for easy setup and maintenance
4. support snmp v1v2 network management
5. e1 clock supports 3 mode: local clock, adaptive and loopback
6. e1 service support lossy and lossless protection
7. ethernet built-in layer 2 switch, support vlan(port based, 802.1q based and qinq based), qos(port based、8021.1p based、mac based and tos based).
8. ethernet support ieee 802.3x, rstp (802.1w), lldp, ethernet ring protection, oam and mac address automatic learning
9. ethernet packet size up to 9720byte
10. support poe (maximum power: 60w);
11. point to point and point to multipoint supported
12. local ethernet port throughput limiting
13. software and hardware online upgrade
14. power supply redundancy
technical specifications
item description
model bd-16e1-ip 5 ge electrical ports and 1 ge optical port, 16 e1s
interfaces ip ports 5 ge electrical ports and 1 ge optical port
comply with ieee 802.3, 802.1q, 802.1p
speed and duplex auto-negotiation or manual
e1 ports 16 e1 ports supported
comply with g.703
impedance: e1-120ω or 75ω
nm port same as ip ports web server and snmp management supported
power supply pluggable dual power supply
2dc or 2ac or dc+ac
-48v~-72vdc or 100～240vac
consumption ≤15w
working environment temperature 0~ 50°c
relative humidity ≤90% (non-condensing)
dimension w x h x d (mm): 440 x 44 x 231
typical application
application1: two units 16e1 tdm over ip work as point to point application.
application2: point to multipoint applicaiton,16e1 tdm over ip work with e1 tdm over ip,2e1 tdm over ip,4e1 tdm over ip,8e1 tdm over ip.
