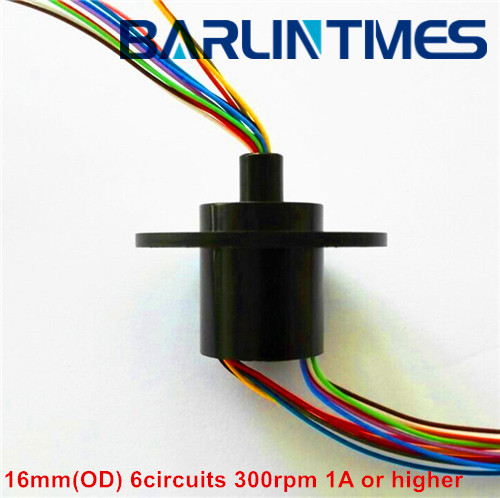

16mm Diameter Capsule Slip Ring, Brand Name : Barlin Times

Capsule slip ring enjoys the main feature of compact design which could provide signalpower combination circuits ( ethernet, usb, rs, canbus, video, sensor, power, control,etc. ) the standard diameter of this series can be from 8.5mm-35mm, also it adopts advanced standard military degree surface processing technology to meet the demand of every customer. Gold to gold contact materials could make sure low electrical noise and longer work life time, specially suit for small and medium size equipment to transmit weak signal.
If you have specific customized requirement, please feel free to consult us so that our sales engineer could recommend the most suitable product to you for you reference.
features:
1.gold to gold contact materials guarantee long life time
2.low torque, low electrical noise and smooth rotation
3.small compact construction
4. Compatible with data bus protocols
5. Continuous transmission of signal andor data under 360 degree unrestrained rotation
option:
1.circuits
2.current & voltage
3.work speed
4.housing materials and color
5.protection degree
6.lead wire exit direction
7.connector type
8.signal and power transmission single or together
application:
1.cctv
2.rotary table, exhibitiondisplay equipment
3.robotics
4.medical equipment
5.wind turbine generator
6.industry process equipment
thr016-06em
specification
circuits 6 circuits
work speed 0-300rpm
work temperature -20�-+60�
work humidity 60%rh or higher
voltage rating 240vacdc
current rating 1a or higher
dielectric strength 500vac@50hz between each circuit
insulation resistance 1000mî©@500vdc
electrical noise 1mî© min
contact materials gold to gold
lead wire size awg30 teflonâ® ul
lead wire length standard 250mm
housing materials engineering plastic
torque �0.15 gm ( for reference�
protection ip54 or higher
