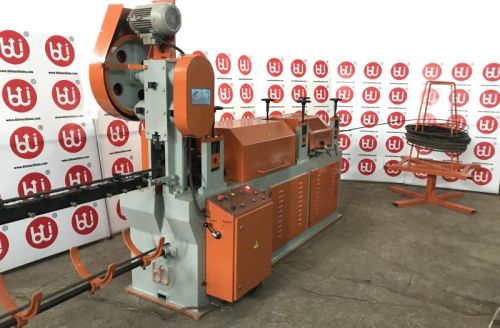

16mm Heavy Duty Wire Straightening Cutting Machine

BTI Heavy Duty Wire Cutting and Straightening Machines BTI M-016 Specially designed for heavy wire industry applications.

Suitable for 8mm- 16mm (Mild Steel Wire)
(Feeding Cap: - 85’ feet per minute)
(Cutting Cap: - up to 70’ feet per minute) *
*(Depending upon the diameter, the quality of wire and length of cut)

M-016– STANDARD FEATURES:

1. Three sets of feed rollers for smooth feeding.
2. Five Nos. Horizontal straightener rollers.
3. Heavy Duty Machine, Built on rigid Steel Fabricated Frame.
4. Heavy Duty SIX STATION rotating spinner for getting exact straight wire.
5. Low Maintenance with High Productivity.
6. Cutting tools is a simple construction, easy to adjust and change.
7. Quickly and easily adjustable dies in spinner.
8. Gear Box driven.
9. Complete with Electrical: - 15hp+2hp 1440rpm Crompton/BB motors & Electric Panel Board.

Free Accessories: -

1. Two set of Cast Iron straightening die. (Set of 6pcs).
2. Two set of cutting die and blade.
3. One Wire stand capacity: - 500kg.
