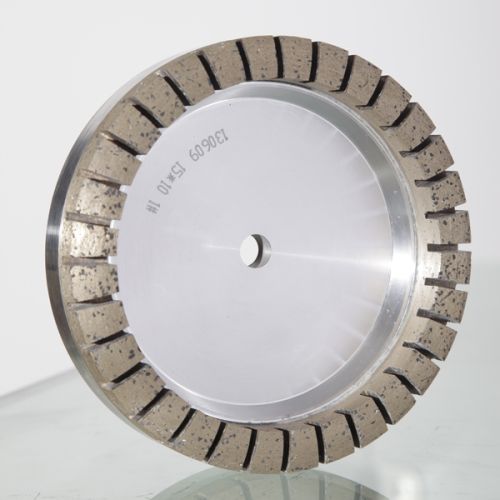

175mm Full Segment Diamond Wheel

Production: Premium metal powder and self-produced synthetic diamond grits are Sintered by high temperature and high pressure.
Appearance: jagged edge. which not only can improving the cutting force, but also can reduce the temperature in working,and protect the glass from heat (burns, explodes, etc.).
Processing glass of thickness: 3-25mm
Shape: Cup wheel.
Advantages for Full Segmented Diamond Wheels:
High sharpness,
no chipping,
high strength,
high thermalheat resistance,etc.
Machine types: Straight line machine, Double edging machine ( such as Deway，ZXM，BOTTERO、BAVELLONI、bovone，Schiatti angelo, etc.)
Full segmented diamond wheel can be Installed on 1# or 2# for straight edging machine and double edging machine for coarse grinding, diamond grits:80#,100#.
These wheels can be worked with Full segmented diamond wheel:
Outer segmented diamond wheel, continuous diamond grinding wheel,resin diamond grinding wheel,diamond pencil edge grinding wheel, 10S polishing wheel.X5000 polishing wheel,or CE-3 polishing wheel.
Tips for using full segment diamond grinding wheels:
1,Adjust the balance before using.
2, Adjust to appropriate speed.
3, With water as working.
4, To ensure operation, the operator must wear safety protective.
