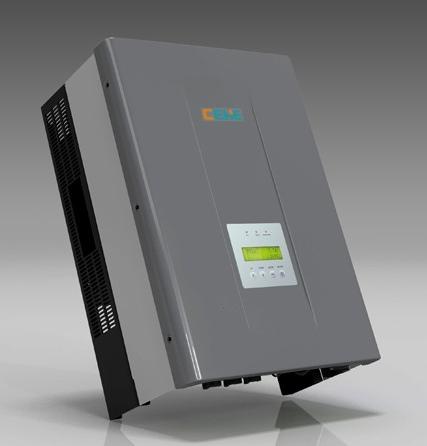

18.5kw 3 Phase AC Pump Inverter, Brand Name : CEHE

We are offering 18.5kw 3 phase ac pump inverter.
Product features
drive power is matched with three phase ac pump
adopt advanced igbt power module
high conversion efficiency,low temperature rise,low noise,long lifespan
advanced mppt technology, efficiency is more than 99%
fully automatic operation, it can store operation date for 10 years
perfect system protection, high reliability
new design of anodized aluminum case
interface:rs485wifi
modular design,easy to install,operate,maintain
technical parameters for pv pump inverter ehe-p18.5kh
max. Input dc voltage 880vdc
recommended mppt voltage 460-850vdc
max. Input dc current 41.1a
max. Mptt efficiency 99%
number of strings 3
max. Applicable motor output power 18.5kw
rated output voltage 380-460vac 3 phase
output frequency range 0-5060hz
rated output current 36a
dimension(whd) 305x430x185 mm
weight 10kg
max. Efficiency 98%
protective class I
protection degree ip65
environment temperature -25-+60 degree above 60 degree need derate operation
cooling method natural cooling
display lcd
communication interface rs485wifi
altitude 3000m;above 3000m need derate operating
noise emission ＜50db
compliance en 50178; iecen 62109-1; iec61800
application of pv inverter:
pump water from deep well
village and town water supply
appartment,hotel and hospital sewage treatment
aeration machine,cooling tower and other industrial usage
solar power staion cleaning
pumping for irrigation.
