1800℃ Chamber Resistance Furnace, Brand Name : Haoyue

We offer hmf1800 chamber type laboratory resistance furnace
application:
chamber type laboratory furnace just for university, science research institute and enterprise to do the analysis and test of chemical element, the sintering of powder and ceramics, the high temperature experiment and quality testing, is also an ideal apparatus to temper, anneal or quench the small block of metal.
features:

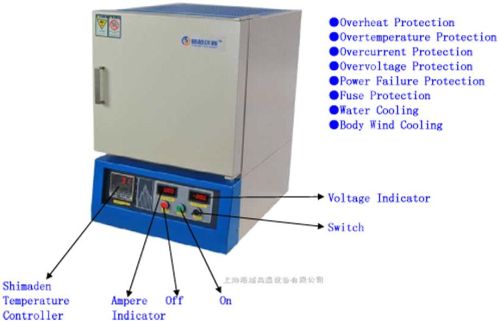

chamber type resistance furnace uses jpanese shimaden 40 steps programmable thermal controlling system, scr controls, phase-shift trigger. Japanese alcera alumina polycrystal fiber as the material of furnace chamber, the temperature uniformity of furnace chamber, the quick temperature rise, the lower temperature of furnace surface, saving energy. Double shell structure and the saving-energy ceramic fiber material are used to make the furnace, which makes sure that the surface temperature of furnace reduces to the normal temperature, the furnace chamber gets the uniformity of temperature.
optional accessories:
computer control, rs485 or rs232 interface, the recorder without paper, stainless steel funnel, alumina crucible, tray etc.
main technical parameters:
model
chamber size (mm)d×w×h
power
(kw)
max. Temp. (℃)
rated temp. (℃)
heating element
voltage
heating rate
hmf1800-20
200×150×150
6
1750℃
1650℃
silicon molybdenum rod
220v
≤20℃/min
hmf1800-40b
400×200×200
8
1750℃
1650℃
silicon molybdenum rod
380v
≤20℃/min
note: chamber size can be customized at your request.
