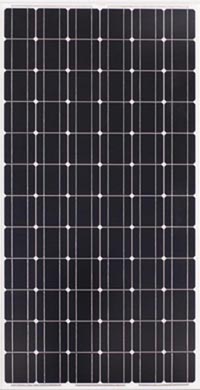

185wp High Efficiency Mono Solar PV Module

Typical Electrical Characteristics
Standard PV Modules Premium PV Modules
Model Number UOM CNPV-180M CNPV-185M CNPV-190M CNPV-195M CNPV-200M CNPV-205M
Rated Maximum Power-Pmax Wp 180 185 190 195 200 205
Power Tolerance % ±3 ±3 ±3 ±3 ±3 ±3
Maximum Power Voltage-Vmp V 37.2 37.8 37.8 37.9 38.0 38.1
Maximum Power Current-Imp A 4.85 4.90 5.05 5.15 5.25 5.38
Open Circuit Voltage-Voc V 44.6 45.0 45.1 45.2 45.3 45.4
Short Circuit Current-Isc A 5.35 5.40 5.55 5.60 5.65 5.70
Maximum System Voltage-VDC V 1000(IEC)/600(UL)
Encapsulated Solar Cell Efficiency-ηc % 16.8 17.3 17.0 17.5 17.9 18.4
Module Efficiency-ηm % 14.1 14.5 14.9 15.2 15.6 16.0
Solar Cell and Configuration 72 cells(125×125mm) in a 6×12 matrix connected in series
Solar Cell Technology & Size Mm Mono Crystalline 125×125mm
Cable Type, Diameter 4mm2(12AWG), UL & TUV certified
Type of Connector IP67, Type Ⅳ
Junction Box IP65,1000VDC. TUV & UL Certified
Number of Bypass Diodes & Type 3 Nos, Schottky By-pass diodes
Maximum Series Fuss Rating A 9
Temperature coefficient of Power %/℃ -0.45
Temperature coefficient of Voc %/℃ -0.35
Temperature coefficient of Isc %/℃ 0.05
Nominal Operating Cell Temperature-NOCT ℃ 45±2
Standard Test Conditions STC STC: AM= 1,5, 1,000 W/m². Cell Temperature 25℃
Operating Temperature ℃ – 40 ℃ to + 85 ℃
Product Certifications IEC61215, IEC 61730-1/2 & CE, UL 1703
Mechanical & Packaging Characteristics
Dimensions A×B×C mm 1581×809×40
Installation Hole Dimensions E×F mm 948×754
Cable Length G mm 1000
Weight Kg 15
Number of Draining Holes in Frame 12
Construction Superstrate: High transmission 3.2mm tempered low iron glass;
Substrate: White Back Sheet; Encapsulant: Fast Cure EVA
Frame Clear anodized aluminium alloy types 6063T5; Color: silver
Packing Configuration and Quantity per pallet 24 pcs per carton and one carton per pallet
Container Loading Capacity 672 pcs per 40 ft cubic container; 288 pcs per 20 ft cubic container
