Product: corrugated paper
Raw material: Pulp, Waste Paper, Straw, Wheat Straw and Bamboo

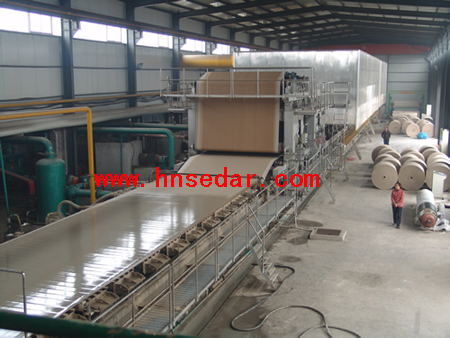

A.Inroduction to the 1880mm Corrugated Paper Making Machine
Trim Width: 1880 mm
Speed: 200 m/min
Output weight: 40-160g/㎡
Daily Capacity: 15-20 T/D
Track Gauge: 2800mm
Transmission mode: AP transmission, Frequency control system and section drive
Digital signal control meter
B.The main section
Cylinder Section: Cylinder mould 1500mm * 3000mm, Couch Roll 450mm * 2500mm, Pneumatic pressure device, Back roller device, pressure mould former
Press Section: Stone Roll: 600mm * 2500mm, Rubber Roll: 600mm * 2500mm, Pneumatic pressure device
Dryer Section: Dryer: 2500mm * 2300mm, Dryer: 1500mm * 2300mm, Pneumatic pressure device,
Transmission section: reduction gear, speed motor, Digital closed-loop control system
Finishing section: Three-roller calendar 1880mm, Cutter, Automatic Rewinding machine
