18km Man 70km Plane LRF TV IR Auto Tracking Surveillance Electro-Optics System

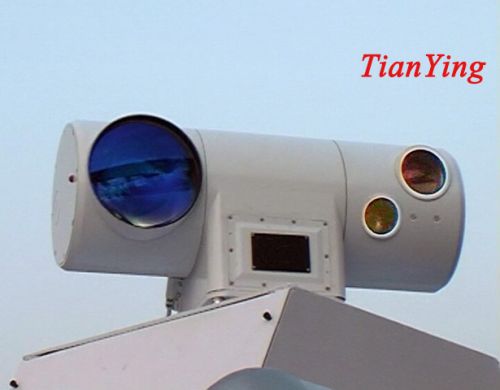

China TianYing TY-P4 electro-optics system is specially designed for precise alignment, clear surveillance tracking, and accuracy measuring target moving data. the system is including coaxial wide spectral band CCTV camera, coaxial long focus cooled thermal imaging, high rate long range eye safe laser rangefinder, high accurate mid-speed turret and auto tracker.

With its combination of a large field of view for wide-area observation and detection, and an extremely small field of view for identification, it fulfills the highest requirements for the seamless surveillance of land and maritime borders. High-performance technology that you can rely on at any time.

The system features line of sight of coaxial cameras and turret is bore-sighted with laser rangefinder, then up to effective accurate measurement and air defense. The TY-P4 can be operated as a stand-alone or integrated into existing legacy operating systems.The camera is suited for use in stationary solutions - for example mounted on masts, tripods, vehicle or building structures - as well as mobile applications.

TY-P4 ultra long range electro optical targeting system system features: 1) Effective accurate measurement due to precise alignment target of coaxial camera with LRF and turret. 2) Ultra long range HD coaxial zoom wide spectral band quick auto day sight TV camera. 3) Ultra long range SD coaxial zoom cooled infrared thermal imaging sight camera. 4) Tracking grade ultra long range high rate eye safe laser rangefinder. 5) Auto tracker function with analog video, option digital video. 6) Compact ruggedized design with hermetically sealed house (weight

Recommended Use: 1, Observation and targeting.

2, Target identification and tracking.

3, Target measurement and position determination.

4, Ultra long range photo and video.

5, Anti-aircraft early warning.

6, Against land, sea and air target fire control.

TY-P4 measuring tracking surveillance EO/IR thermal camera system specifications:

Model
TY-P4
Thermal Camera
Detector
Cooled FPA
Pixel
640x512
Spectral band
3μm~5μm
Pixel
15mm x 15mm
Focal length - Option 1
40/200/1000mm (N:0.55°, M: 2.7°, W: 13.7° for FOV horizontal)
Focal length - Option 2
110mm to 1100mm continuous zoom (0.5° to 5° for FOV horizontal)
Focal
Manual, Automatic
Sensor Start-Up Time
Alignment
Coaxial zoom
Detection human range
Approx 16 km
Recognition human range
Approx 10 km
Day Light Camera
Detector
1/1.8" CMOS
Focal length
48x optical continuous zoom lens.
Resolution
1920×1080
Wavelength
400nm ~ 1100nm
Alignment
Coaxial zoom
Detection range
Approx 18km for human, Approx 25km for 6m x 3m vehicle
Recognition range
Approx 12km for human, Approx 22km for 6m x 3m vehicle
Laser Range Finder: Option-1
Wavelength
1.57μm
Beam divergence
≤  0.9 mrad
Ranging
> 25km for 30% reflection 5m² target in standard visibility 23.5km
Measuring rate
12.5Hz continuous 10minutes
Measurement accuracy
≤  +/-5m
Safety class
Class 1 (EN 60825-1:2007)
Reliability life
≥ one million range measurements
Laser Range Finder: Option-2
Wavelength
1.57μm
Beam divergence
≤  1 mrad
Ranging
> 18km for 30% reflection 5m² target in standard visibility 23.5km
Measuring rate
1Hz continuous, 2Hz burst for 25secs.(1Hz typical 50 secs to 3 mins).
Measurement accuracy
≤  +/-1m
Safety class
Class 1M (EN 60825-1:2007)
Servo
Accuracy
0.01°
Direction range
azimuth:360° continuous; elevation:+45°~-45°
Directing speed range for azimuth
0.01°/s to 45°/s
Directing speed range for elevation
0.01°/s to 45°/s
Parking Position
Yes
Programmable Search
Program multiple preset scene locations
Communication protocol
Pelco-D
Environmental
Operating temperature range
-32ºC ~ +60ºC
Storage temperature range
-40ºC ~ +70ºC
Protection level
IP66
Power
Power Supply
220V AC / DC 24V
Power consumption
≤ 250W (average for typical operation profile)
System Features and Physical
Auto tracking
Yes
Boresighting
line of sight of cameras is boresighted with laser rangefinder
Size
appr. 950 mm x 650 mm x  635 mm
Weight
appr. 120kg
Note
1, Technical information is subject to change without notice.  2, Depending on the region of sale.
