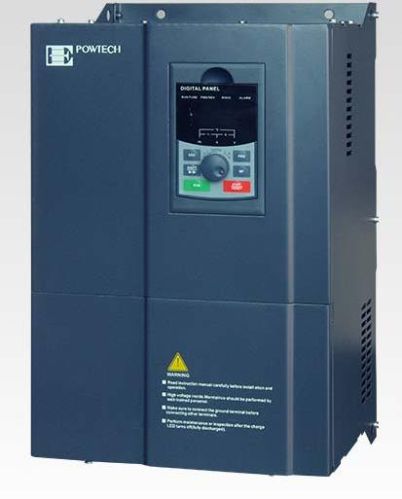

18kw Vector Control 380v Vsd Variable Speed Drive

We offer 18kw vector control 380v vsd variable speed drive.
Detailed product description
18kw vector control 380v vsd variable speed drive
quick detail
dc or ac input,3 phase ac output
full automatic working
motor parameter self-learning
ledoled display--multi language
double power design and best european componet
special design for high environment temprature and fluctuate voltage
general 5060hz, 0.00 ~ 400.00hz adjustable, 0.01hz precision
dsp chip,plc function,terminal control,vector control,pc rs485 remote control
performance introduction
1. Using dsp as the core of control unit to achieve high-speed high-performance control;
2. Way of speed control: svc, vc, vf control, torque control
3. Automatically idendtify the motor parameters, intelligent adjustment to the best control mode.
4. Deard time compensation and automatic slip compensation function, low frequency 0.25hz can be achieved under sensorless vector control.
5. Simple plc function can realize up to 16 segments speed and 4 segments acceleration control.
6. One key to shuttle” keyboard, swirling free, two way custom button with the demand for expansion.
7. Multi-language, humanization display menu, highlighted oled+led simultaneous display 3 groups of state parameters.
8. Keyboard is hot-pluggable and can storecopy 4 groups of operating parameter programs
9. Powerful communications function which can support standard to support standard rs485 and modbus, meanwhile providing remote keyboard control.
10. Dual analog input, custom control mode, free combination of control factors
11. Short-circuit protection, more safer and more stable
12. New thermal management structure, unique duct design and thermostat heat agencies, allow the product to run more stable and longer
13. Standards emc design to minimize pollution for power
14. All strengthened pcb coating working well in kinds of environments
