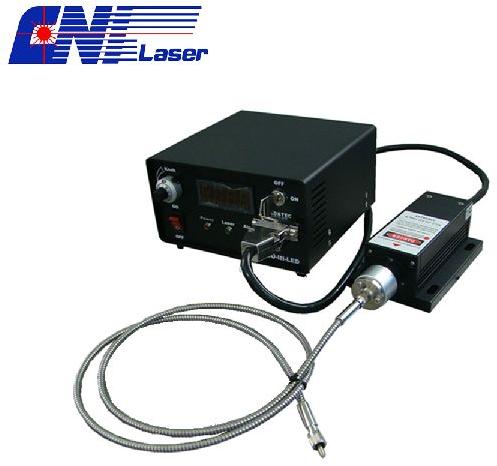

1940nm Infrared Fiber Coupled Laser System

1940nm Laser Module with Fiber Coupling  All series CNI laser modules can be fiber coupled with different core diameter MM fiber or SM fiber. You have  to refer to the detailed specs of each laser modules (such as power, stability, noise, size, etc) to decide which one is suitable for your application. We would like to do the coupling job for you. Fiber Coupling Efficiency Chart (Connector: SMA905 or FC) Laser Type                                               Fiber Coupling Efficiency                                                                                                        FC for SM fiber ,FC/SMA905 for MM fiber SM Fiber 4~9 µm MM Fiber ≥50 µm MM Fiber ≥100 µm MM Fiber ≥200 µm MM Fiber ≥400 µm DPSS Laser     TEMoo >40% >70% >75% >80% >90% Multi transverse mode                    >20% >60% >70% >80% >90% Diode Laser TEMoo >30% >60% >75% >80% >90% Multi transverse mode Low
