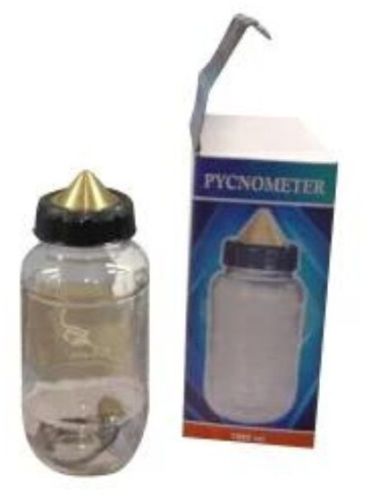

Contact SupplierPYCNOMER -1LTR CAPACITY
| Purpose | To determine the specific gravity (relative density) of soil solids or aggregates. |
| Capacity | 1 Liter (1000 ml) nominal. |
| Material | - Heavy-duty borosilicate glass (for laboratory models) OR - Aluminum / Brass / Stainless steel (for rugged field models). |
| Design | - Wide mouth with threaded or flanged opening. - Fitted with a screw-top conical brass cap with a central hole (about 6 mm diameter) for air escape. |
| Diameter | Typically around 100–120 mm (varies slightly by manufacturer). |
| Height | Approximately 180–220 mm. |
| Cap Type | - Metal conical screw cap - Rubber gasket for leak-proof sealing. |
| Weight | Approx. 0.8–1.2 kg (depending on material). |
| Finish | Smooth and polished inner surface to prevent adherence of soil or water. |
| Operating Temperature | Typically used around 27 ± 2°C for standard specific gravity tests. |
| Conformance Standards | IS 2720 (Part 3/Section 1) for soil testing, ASTM D854 for specific gravity of soils, AASHTO T100. |
| Accessories (Optional) | - Glass thermometer - Measuring cylinder - Vacuum pump (for air removal, if needed). |
