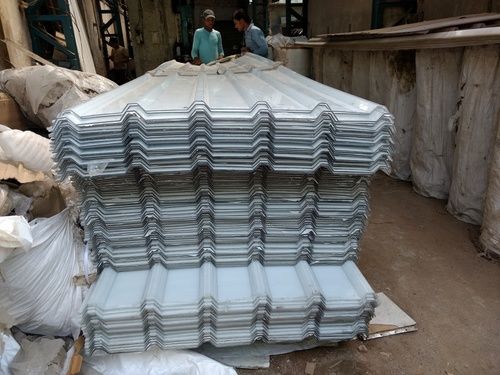

    Polycarbonate Corrugated Sheet, Thickness : 1mm to 12mm

    • Thickness1mm to 12mm
    • WidthUp to 2100MM
    • ColorsClear, Grey, Opal, Milky White, Bronze, Blue, & Tailor made
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location Anywhere in India

    Polycarbonate corrugated sheets are available in matching profile to most of the contemporary corrugated roofing sheets. The dimension are generally governed by the customer requirement and hence we....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 14 Years
    • building Nature of Business Retailer
    • gst icon GST No. 24AOBPK2686P1ZI

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    Polycarbonate corrugated sheets are available in matching profile to most of the contemporary corrugated roofing sheets. The dimension are generally governed by the customer requirement and hence we offer tailor-made solution in terms of choosing the right product and the dimensions in which it is required for a particular application. An island skylight configuration would require polycarbonate corrugated sheets in dimension identical to the corrugated roofing sheets. In strip-light & north-light configuration it may be varied as per recommendation of the Architect/Counsulting Engineer. Manufacturer, Supplier, retailer and wholesaler of domes, dust bins, fabric car porch, fiber glass shed, FRP door, fruit chairs, gazebo, khaprail sheds, polycarbonate shed, railing sheets, room weather proof, aluminum composite panels etc.


    Specifications

    DescriptionFortech® - UV 3000 Series

    Fortech® - UV 5000 Series

    UV StabilizedYesYes
    UV CoatingNA40-50 µ
    Both Side PlainAvailableAvailable
    EmbossedAvailableAvailable
    DiamondAvailableAvailable
    ColorsClear, Grey, Opal, Milky White, Bronze, Blue, & Tailor madeClear, Grey, Opal, Milky White, Bronze, Blue, & Tailor made
    Thickness1mm - 12mm1mm - 12mm
    WidthUp to 2100mmUp to 2100mm


    Technical Data Sheet

    GENERAL
    General PropertiesMethodUnitsValue
    DensityISO 1183g/cm31.2
    Light Transmission (Depending on thickness)ASTM D 1003%81-90
    Reflective indexISO 489  1585
    MECHANICAL
    Tensile Strength at yieldISO 527-2MPa60
    Tensile ModulusISO 527-2MPa2300
    Elongation at breakISO 527-2%>100
    Elongation at yield  %6
    Flexural ModulusISO 178MPa2330
    Charpy Un-notchedISO 179KJ/m2Not Break
    Izod Impact notchedISO 180aKJ/m2> 65
    THERMAL
    Temp of deflection (HTD) Under load of 1.8 MPaISO 75-1°C130
    Vicat softening temp (50 °C/h 50N)ISO 306°C144
    Thermal conductivityDIN52612W/m x°C0.2
    Coefficient of linear thermal expansion 0-50°CISO 11359mm/(mx1°C)0.07
    GWFI(Glow-wire Flammability index)IEC60695-2°C900
    ELECTRICAL
    Volume ResistivityIES 60093? x cm3 x 1014
    Surface Resistivity, dryIEC 60093?6 x 1015
    Dissipation Factor 1MhzIEC60250  0.009
    Dissipation Factor 100HzIEC60250  0.0006
