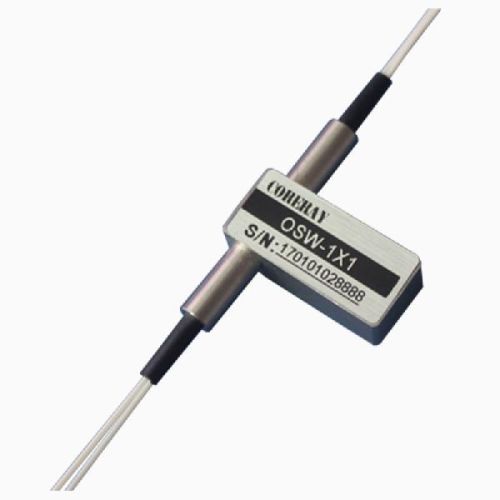

1x1 OPTICAL SWITCH

We provide:
1x1 fiber optical switch, 1x1 mechanical optical switch,
1x1 mems optical switch, 1x1 sm mm optical switch
1x1 mini optical switch, 1x1 magneto-optical switch
1x1 optical switch features
low insertion loss
wide wavelength range
low crosstalk
high stability, high reliability
epoxy-free on optical path
latching and non-latching
1x1 optical switch applications
optical signal switching and routing
optical network protection and restoration
optical network monitoring
video distribution
instrumentation resource sharing
military communications
1x1 optical switch specifications
parameters sosw-1×2
wavelength range  nm 1295~1325,1520~1580
testing wavelength nm 13101550
insertion loss  db typ:0.7 ,max:1.0
return loss  db ≥50
channel cross talk  db ≥45
pdl db ≤0.10
polarization mode dispersion  ps ≤0.20
tdl db ≤0.25
power handling  mw 300
switching speed  ms 50~200
repeatability db 2k
operating temperature  °c -40~+85
storage temperature  °c -40~+85
dimensions  mm (l)58.2×(w)8.4×(h)8.4(±0.2).
