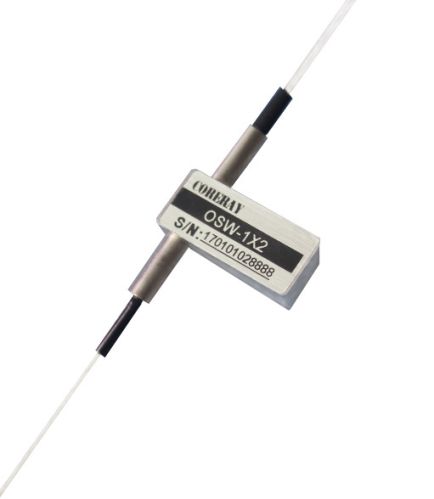

1x2 Optical Switch, Brand Name : CORERAY

We provide:
1x2 optical switch features
1x2 optical switch low insertion loss
1x2 optical switch wide wavelength range
1x2 optical switch low crosstalk
1x2 optical switch high stability, high reliability
1x2 optical switch epoxy-free on optical path
1x2 optical switch latching and non-latching
1x2 optical switch applications
optical signal switching and routing
optical network protection and restoration
optical network monitoring
video distribution
instrumentation resource sharing
military communications
specifications
parameters osw-1×2
wavelength range nm 650～1310 1260～1670
testing wavelength nm 65078085098010641310 13101490155016251650
insertion loss db typ:0.6,max:1.0 typ:0.5 ,max:0.8
return loss db ≥30 ≥50
crosstalk db ≥35 ≥55
pdl db ≤0.05
wdl db ≤0.25
tdl db ≤0.25
repeatability db ≤±0.02
power supply v 3.0 or 5.0
lifetime cycle ≥ 107
switch time ms ≤8
transmission power mw ≤500
operation temperature ℃ -40～+85
storage temperature ℃ -40～+85
weight g 16
dimension mm (l)27×(w)12.6×(h)8.5(±0.2)
pins
optical path electric drive sensor status
1×2 1 5 6 10 3－4,7－8 2－3,8－9
latching p1---p2 na na gnd +5v open close
p1---p3 +5v gnd na na close open
non-latching p1---p2 na na na na open close
p1---p3 +5v na na gnd close open
electrical parameters
voltage current resistor
5v latching 4.5~5.5 36~44ma 125ω
5v non-latching 4.5~5.5 26~32ma 175ω
3v latching 2.7~3.3 54~66ma 50ω
3v non-latching 2.7~3.3 39~47ma 70ω.
