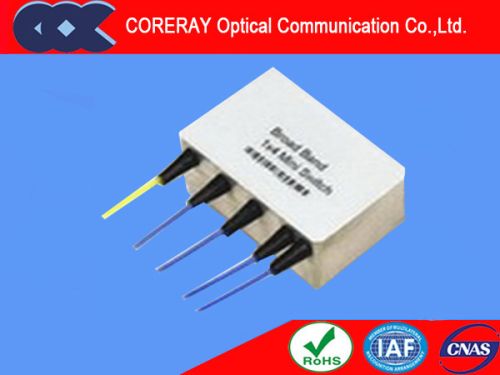

1x4 Solid-state Fiber Optical Switch, Brand Name : coreray

This is achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The μs-series fiber optic switch is designed to meet the most demanding switching requirements of reliability, durability, response, and continuous high frequency switching operation.
1x4 solid-state fiber optical switch features
● no moving parts, best reliability
● ultra fast switching speed
● extremely stable latching mode
● low power consumption
● easy to route-all fibers on one end
● exceptional durability and stability
1x4 solid-state fiber optical switch applications
● optical switching
● high speed protection
● system monitoring
● test & measurement
● fiber-optics sensing system
item unit parameters notes
unidirectional bidirectional
wavelength range nm 1525～1565 other band optional
insertion loss db 1.8 (typ.); 2.2 (max.) 2.0 (typ.); 2.4(max.) add 1.2db forhigh-powerversion
pdl db 0.2 (typ.); 0.3(max.)
return loss db 40 30
crosstalk db 40 35
pmd ps 0.2
repeatability db +- 0.01
durability cycles > 30 billions
switching speed μs 100 ~ 400
operating temperature °c -5 ~ 70
storage temperature °c -40 ~ 85
