planar lightwave circuit (plc) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from central office (co) to multiple premise locations.

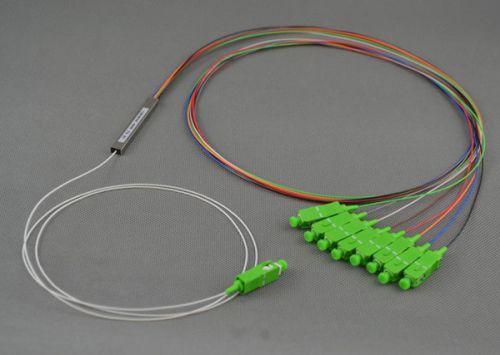

bare fiber splitter is a kind of odn product suitable for pon networks that can be installed in the pigtail cassette, test instrument and wdm system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
| features | application |
| 1x8 bare splitter, unconnectorized | optical signal distribution |
| 250μm itu g.657a1 for fiber input/output | data communications |
| low insertion loss ≤ 10.5db | lan and catv system |
| low polarization dependent loss (pdl) ≤ 0.3db | fttx deployment |
| operating bandwidth: 1260 - 1650nm | ftth network |
| compact design, suitable for installation in optical equipments | passive optical networks (pon) |
| wide operating temperature: -40 - 85°c, support industry standard applications | measuring system and laser system |
| high reliability and stability, telecordia gr-1221/1209 compliant | dwdm and cwdm systems |
different splitting ratio is available, 1x2, 1x4, 2x4, 1x8, 2x8, 1x16, 2x16, 1x32, 2x32 and 1x64.
