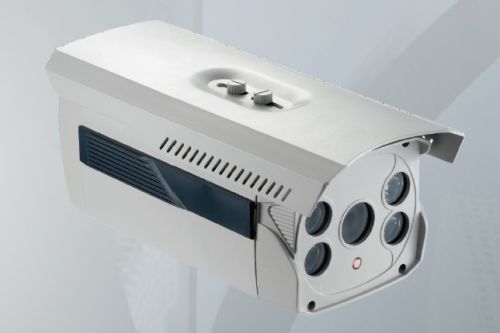

We are offering sdi ir camera.
image sensor: 13" cmos panasonic
pixel size: 2.75(h)μm*2.75(v)μm
master clock: 27mhz
number of active pixels: 1944(h)*1092(v)=2,122,848(pixel)
electronic shutter: 160s ~ 1167,500s
effective pixels: 1920(h)x1080(v)
min. Illumination :0lux@f1.2
agc: can be set through menu
lens: 3.6mm4mm6mm8mm optional
blc: can be set through menu
auto-iris lens type: dc or video drive
resolution: 1200tvlines
day & night: icr-ir cut filter
white balance: atw, awc→set, indoor ,outdoor, manual
4pcs ir array led, ir distance 80m
waterproof: ip66
3d noise reduction: yes
image configure: acuity, saturation, brightness (adjustable)
mirror image: verticalhorizontal
mirror image shadow: yes (offon) wdr: yes (adjustable) image resolution: 1080p (1920x1080) ntscpal
frame rate: 30 fps (60 hz), 25fps (50hz)
video output: 1ch sdi (1.0vp-p, 75ω)bnc, remote storage at ie client
auto iris: dc drive, offonauto (0~255 adjustable)
alarm output: yes
power supply: 12vdc 1a
