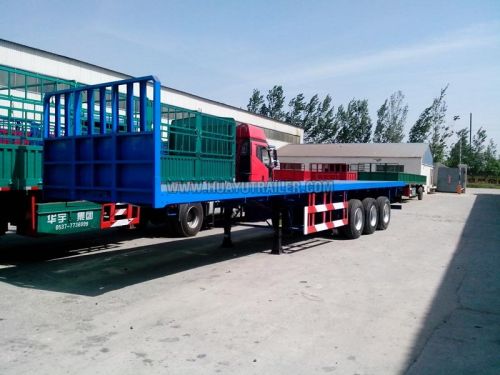

2/3 Axle Flatbed Semi Trailer

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Owing to their multiple uses, 2/3 Axle Flatbed Semi Trailers are in heavy demands at present. We are amongst the oldest and most trusted suppliers of 2/3 Axle Flatbed Semi Trailers in China. We are known for manufacturing, supplying and exporting highly durable 2/3 Axle Flatbed Semi Trailers and own a huge client base all across China and the rest of the world demanding the same in bulk on a regular basis. We are into this field for last many years and are fully capable to deliver marginal as well as bulk orders on time to multiple locations as and when required by our clients.

View More Details

Send Enquiry

Details

DIMENSIONS 3 axle flatbed semi trailer for sale
Tare weight	6000KGS	Payload	45000KGS
Overall length	12450mm	Overall Width	2480mm

Specifications

Chassis	Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 6mm;bottom flange16mm,width 140mm
Axle	2 axles
Axle	Brand name:BPW.L1 or FUWA –optional upon choice
Suspension	Mechanical suspension or air suspension
Spring	Leaf spring or air bag
King pin	JOST brand2’’ bolt-in king pin
Twist lock	12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container
Landing gear	JOST brand two-speed,manual operating ,heavy duty landing gear
Wheel rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Tyre	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 tire optional
Spare tire	One set of spare tire including a carrier
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Paiting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box
