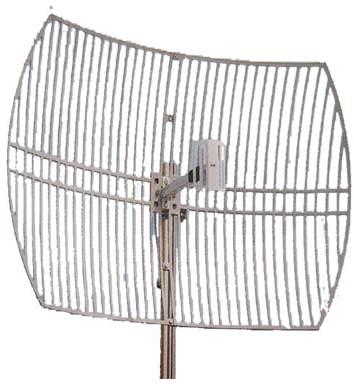

Contact SupplierWe are offering 2.4ghz 24dbi dish antenna.
●electrical specifications
model
ac-d24g24
frequency range
2400-2483 mhz
band width
83 mhz
gain
24 dbi
fb ratio
≥30 db
horizontal beam width
10°
vertical beam width
14°
v.s.w.r
≤1.5
lightning protection
dc ground
radiation
direction
polarization
vertical
maximum input power
100w
impedance
50ώ
operating temperature
-40℃ to+70℃
connector
n female
cable type
lmr400
cable length
30 cm
mount way
pole
π●mechanical specifications
antenna dimension
600*900 mm
weight
2.5 kg
mounting mast diameter
mast diameter-mm ø30~ø50mm
rated wind velocity
60ms
