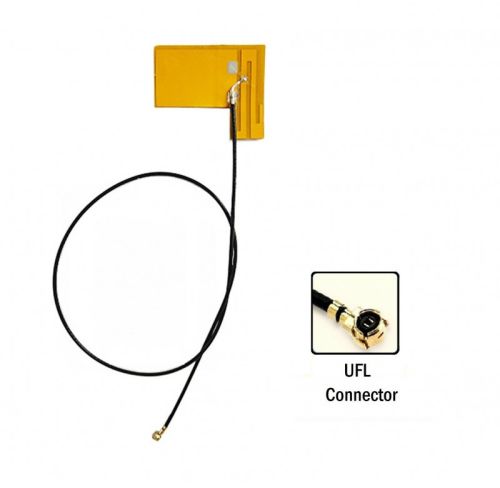

2.4ghz 3dbi PCB Flexible Antenna With 1.13mm (l-10cm) Cable + Ufl Connector

A 2.4GHz 3dBi PCB flexible antenna combines elements of both PCB (Printed Circuit Board) and flexible antenna designs for specific wireless communication needs. Here’s a detailed look at its features and applications:

1. 2.4GHz Frequency:

   • Frequency Band: This antenna is designed for the 2.4 GHz frequency band, commonly used for Wi-Fi (802.11b/g/n), Bluetooth, and some other wireless technologies. It operates within the ISM (Industrial, Scientific, and Medical) band.

2. 3dBi Gain:

   • Gain: A 3dBi gain indicates that the antenna provides a moderate increase in signal strength compared to an isotropic radiator. This gain level is higher than a 2dBi antenna, which can improve range and signal quality, but is still relatively modest compared to higher-gain antennas.
   • Performance: The 3dBi gain is suitable for applications where moderate range and signal enhancement are needed. It is often used in environments where signal strength needs to be improved but extremely high gain is not required.

3. PCB (Printed Circuit Board):

   • Design: The antenna is integrated into a PCB, which is a common method for creating compact and cost-effective antennas. The design allows for efficient manufacturing and integration into electronic devices.
   • Integration: PCB antennas are etched onto the circuit board and are typically used in devices where space is at a premium, such as in compact electronic products.

4. Flexible:

   • Flexibility: Unlike rigid PCB antennas, a flexible PCB antenna is made from materials that allow it to bend or conform to different shapes. This flexibility can be useful in devices where the antenna needs to be adapted to fit specific internal layouts or designs.
   • Durability: Flexible PCBs are generally more durable and resistant to mechanical stress compared to rigid PCBs. They can be bent or adjusted without damaging the antenna, making them suitable for dynamic or confined spaces.

• Consumer Electronics: Used in devices such as smartphones, tablets, laptops, and other compact devices where internal space is limited and a flexible design is advantageous.
• IoT Devices: Ideal for Internet of Things (IoT) applications where the device may have a non-standard shape or requires a flexible antenna to fit into a small enclosure.
• Wearable Technology: Useful in wearable devices where the antenna needs to conform to the contours of the device or be embedded in flexible materials.

• Benefits:

  • Compact and Space-Efficient: Integrates directly into the PCB, saving space and reducing the need for additional components.
  • Flexible Design: Allows the antenna to fit into various shapes and sizes, enhancing design versatility and adaptability.
  • Moderate Gain: The 3dBi gain provides a balance between performance and range, suitable for many common wireless applications.

• Limitations:

  • Signal Range: While a 3dBi gain improves performance over lower-gain antennas, it may still be limited compared to antennas with higher gain, which are better for long-range communication.
  • Placement Sensitivity: The performance of flexible PCB antennas can be influenced by their placement within the device and surrounding materials. Proper design and placement are crucial for optimal performance.
