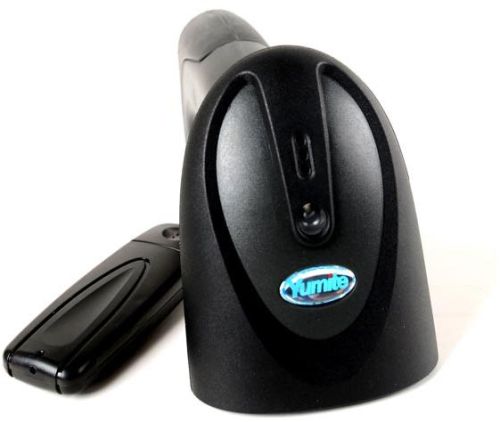

Contact SupplierWe are offering wireless laser barcode scanner . Light source type visual lasing diode; the wave length is 650mm.
trigger mode: manul  Â
scanning mode single-line scanning
scanning speed 100±2 times s
resolution ≥4mil
printing contrast ratio the lowest reflectivity difference is 30ï¼….
bit error rate 150 million
charging input voltage 5vdc±0.25v
power 100mw (work);500mw (momentary maximum)Â Â Â Â Â Â
current 20ma (work): 100ma (momentary maximum)Â Â Â Â Â
standby current <20ma
light intensity 3000-12000lux
depth of field 5mm-630mm
scanning angle ±60°±65°±42° (left and right, front and back, rotation)
decoding capacity        upceanjan, upcean with supplemental, uccean 128, code 39, msi, code11   Â
code 39 full ascii, code 39 trioptic, code 128, code 128full ascii
codabar, code93, discrete2of5, iata, rssvariants, codabar, chinese2of5Â
international general dimensional barcodes, e.g. Inteleaved25, interleaved2of5,china postal service code and so on
prompt mode buzzer and led indicator
receiving interface  rf is equipped with 2.4g bidirectional wireless digital transmission module
weight 200gÂ
charging interface type      rj-45 crystal head, one meter long (equipped with 5v charger; the battery is being charged when the red light is on and fully charged when the green light is on)
hull material abs+pc
temperature 0℃ to 50℃ (work);-40℃ to 60℃ (storage)
setting mode manual (scanning and setting barcodes according to the sequence)
safety regulations laser safety class: en60825-1, class 1, state level-i laser safety standard
emc: en55022,en55024
electrical safety: en60950-1
packaging level: ip52
