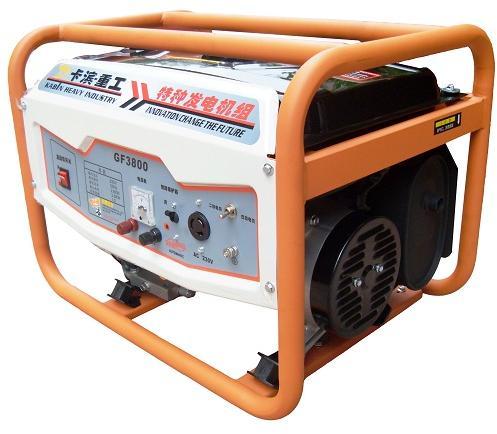

2.8kw ssc auto-choke gasoline generator set
Â
unique features different with conventional gasoline generators:
Â
ssc strong starting current
1 with static excitation system generation technology invented by kabin, generator with 2.8kw output capacity is capable to power 2.2kw electrical motor and air conditioners.
2 have similar load capacity to conventional rated 5kw generators by unique ssc technology but far cheaper.
Â
auto choke engine brings unique advantages:
1 easy operation - designed according to aero-dynamics, the new auto-choke carburetor is easy and simple to operate for better starting up.
2 longer life span - longer life span is achieved through eliminating excessive potential carbon deposition caused by operational mistakes.
3 eco-friendliness & energy saving - auto-choke carburetor will automatically adjust the intake amount of fuel and air mixture. Fuel consumption can be reduced by 20% at operation state with half load, thus fuel cost saved in one year will be as much as to buy two new conventional engines.
Frequency | 50Hz / 60Hz |
Rated Voltage | 230V |
Rated /Max Power Output | 2.8 / 3.0 KW |
Max Current | 25A |
Output Type (AC/DC) | AC |
Phase (Single/Three Phase) | Single Phase |
Voltage Regulating Mode | AVR |
Power Factor | 1.0 |
Engine Model | 170F |
Engine Type | Single Cylinder, Air Cooling, 4-Stroke, OHV |
Fuel Supply Mode | Auto Choke Carburetor |
Compression Ratio | 8.2:1 |
Bore × Stroke | 70 × 54 mm |
Displacement | 208 CC |
Max Power Output | 6.5/3600 hp/rpm |
Ignition Mode | TDI |
Starting Method | Recoil /Electric Key Start |
Fuel/Oil Capacity | 15 / 0.6 L |
Noise Level | 69 dB/7m |
Continuous Work Time | 10 Hours |
Oil Alert | Oil Alert Protection |
Gross/Net Weight | 43.6 / 42.6 KGS |
Dimension L×W×H | 590 × 430 × 453 mm |
Packing Size L×W×H | 600 × 440 × 470 mm |
Container Load Q'ty | 225 units/20GP, 500 units/40GP, 500 units/40HQ |
