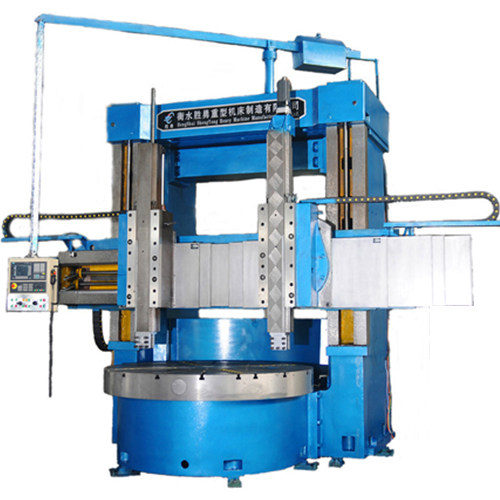

2 Axis CNC Vertical Turret Lathe Machines

CNC vertical turret lathe machines is fixed column two coordinate linkage vertical machining equipment. CNC Vertical Turret Lathe Machines have the basic function of turning outer circle and the end surface, drilling, boring, tapping with machining for large, heavy, irregular shape workpiece. Our vertical turret lathe for sale is good quality, safe and reliable, has been in a leading position in the China's domestic lathe market. We can supply the best vertical turning lathe service.
CNC Vertical Turret Lathe Machines is equipped with Siemens control system and AC servo motor. This series of CNC Vertical Turret Lathe Machines use modular design according to the user's special requirements, with special features or personalized products, but vertical lathe also can be equipped with vertical turning and milling center.
Technical specification of 2 axis CNC Vertical Turret Lathe Machines for Sale CK5116
1 Table diameter 1400 mm
2 Maximum turning diameter 1600 mm
3 Maximum height of workpiece 1000 mm
4 Maximum weight of workpiece 5 t
5 Speed change of table 5-160 rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 915 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 900 mm
11 Crossrail travel 650 mm
