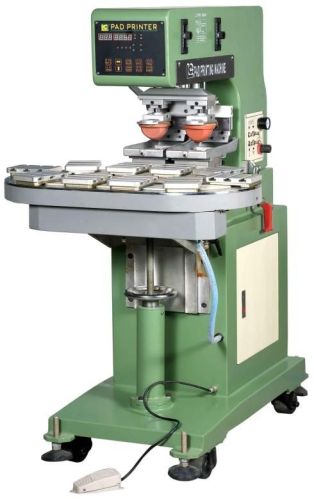

2-color Pad Printer With Convey

We are offering 2-color pad printer with convey.
two-color rotary printing machine is a single product to complete the two models chromatography, forwarding table chromatic precision plate, do not take place to save operating procedures, to facilitate pick and place parts, work efficiency increased.
for example, for a variety of printed materials: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface arc printing products, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts and so on
feature:
1, advanced computerized system control
2, which consists of four counters.
3, the body of high quality steel frame structure, surface temperature paint, light weight body solid, beautiful and practical.
4, oil ink roller assembly and disassembly, and easy to clean.
5, independently adjustable plastic head up and down stroke and speed.
6, automatic balanced squeegee, scraping the oil neat.
7, each of the ink disk blocks can be x, y, angle independent tuning, chromatic accurate, and improve efficiency.
8, a printing ink can stick two in order to obtain a larger printing ink.
9, you can not drop empty lines before and after the glue to prevent the pause when the ink to dry.
10, the pneumatic components of germany festo pneumatic components, the movement speed can be adjusted independently.
specifications:
lc-spm2-150/10
operation：semi-automatic
printing color: 2 color
work station: 10pcs
cylinder head up and down distance: 75mm
cylinder stroke distance: 175mm
work table size: 90 × 125mm
standard plate size: 100 × 150mm (4 '× 6')
ink cup diameter: 60 (optional), 90mm
maximum speed: 1800 pcs / hr
power: 110v/220v 50hz
power: 35w
pressure: 6 bar
air consumption: 62 liter / min
dimensions: 1000 × 700 × 1420mm
weight: 160kg
lc-spm2-200/10
operation：semi-automatic
printing color: 2 color
work station: 10pcs
cylinder head up and down distance: 100mm
cylinder stroke distance: 225mm
work table size: 90 × 125mm
standard plate size: 100 × 200mm (4 '× 8')
max printing area: 80*180mm
maximum speed: 1600 pcs / hr
power: 110v/220v 50hz
power: 35w
pressure: 6 bar
air consumption: 67 liter / min
dimensions: 1100 × 700 × 1420mm
weight: 165kg.
