Contact SupplierWe are offering 2 head efficient desktop dispensing robot.

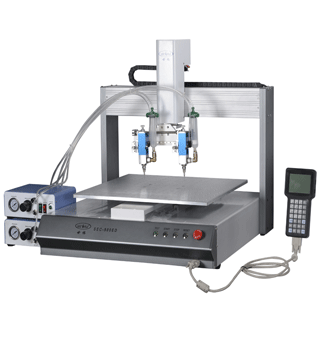

2-head efficient desktop dispensing robot (sec-500ed-2t) enables to dispense to 2 products synchronously, which is high efficient.
main functions:
bonding, sealing, filling, coating, pouring, etc.
features:
1. Drawing points, lines, circle on inwall, extine, vertical plane, gap, spherical surface of workpieces.
2. Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any 3d non planar trajectory path.
3. Excellent teaching function to support array, graphical browsing, 3d ellipse, common graphical library inserting, group editing and other senior functions.
4. Minisd file storage with high speed and 2g capacity can store 999 dispensing process documents.
5. The size of glue, speed of glue spreading, dispensing time, time of halting dispensing can be set by parameters.
6. With the help of second special dispensing controller, glue output is quite stable without leaking and dripping.
7. The function of automatic gel prevention can effectively prevent glue curing from jamming the needle head.
8. Powerful pc compatibility with the logoshop software can import mainstream design software(such as auto cad,coral draw,etc.) to generate a variative of file formats(such as, .nc, .ai, .dxf, .jpg, .bmp, scanner, etc.).
applicable products:
electronic products:
capacitive screen, telephone case, computer case, chip, pc board, circuit board, electronic component, etc.
lcd:
lcd monitor, touch screen, lcd substrate, etc.
adornment:
trademark, label, ic card, q card, etc.
applicable glue:
super glue, uv glue, epoxy, solder paste, thermal paste, etc.
2-head efficient desktop dispensing robot (sec-500ed-2t) can be installed at most 6 heads to reach higher efficiency.
