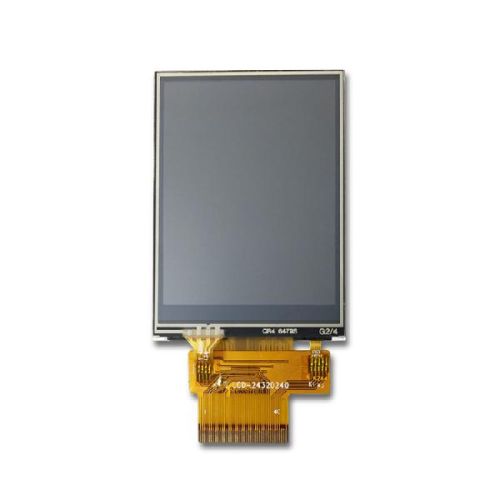

2 Inch TFT LCD Module 42.72W) x 60.26(H) x 3.5(D), Brand Name : TSD

₹ 455 / Piece

MOQ1000 Piece(s)
Brand NameTSD
Size42.72W) x 60.26(H) x 3.5(D)
Number Of FlowerTransmissive
Brightness300cd/m²
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Size42.72W) x 60.26(H) x 3.5(D)
Number Of FlowerTransmissive
Brand NameTSD
Brightness300cd/m²
Resolution240*320
Viewing Angle12H
Country of OriginChina
Driver ICILI9341V
Model NumberTST24QV13AR
Name2.4 inch tft lcd module
Interface TypeMCU 8/16-bit

Lcd size: 2.4 inch
resolution(wxh): 240 x rgb x 320
lcm(wxhxd): 42.72 x 60.26 x 3.5
active area(wxh): 36.72 x 48.96
dot pitch(wxh): 0.051 x 0.153
viewing direction: 12 o'clock
resolution: qvga 240*rgb*320
gray scale inversion direction: 6 o'clock
viewing angle: top:55 bottom:35; leftright:55
color depth: 65k262k
pixel arrangement: rgb vertical stripe
backlight type: 4leds.
