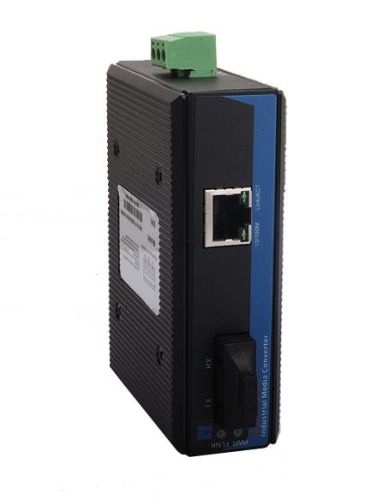

2-port Industrial Ethernet Media Converter

We are offering 2-port industrial ethernet media converter.
Introduction
IMC102 is a speediness 10/100Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast. Beside this, IMC102 support electric working mode/rate setting, LFP, DIP switch outside, plug-and-play.
IMC102 series supports 2 TP ports and 1 fiber ports. TP(RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100BaseFX supports single-/multi-mode, SC/ST connector, optional.
IMC102 adopt industry standard design, IP30 protection, rugged high-strength metal case, power supply input(12V�36VDC), -40 to 75°C working temperature.
Specification
Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
RJ45 port rate: 10/100BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST connector, optional)
Single-mode: 20, 40,60, 80, 120Km,optional
Multi-mode: 2,5Km,optional
Wavelength: 850nm, 1310 nm, 1550nm
Typical 100Base-FX: Multi-mode:155Mbps, 1310nm, 2Km, average output�-18dBm, sensitivity�-35dBm
Single-mode:155Mbps, 1310nm, 20Km, average output�-12dBm, sensitivity�-36dBm
Power
Input Voltage: 24VDC (12VDC~36VDC)
Opposite connection protection
Mechanical
Dimensions: 103mm�78mm�32mm (H�W�D)
Casing: IP30 protection, Metal case
Weight: 350g
Environmental
Operating Temperature: -40 to 75°C
Storage Temperature: -45 to 85 °C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI�FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), level 4
EN61000-4-3(RS), level 4
EN61000-4-4(EFT), level 4
EN61000-4-5 (Surge), level 4
EN61000-4-6 (CS), level 4
EN61000-4-8, level 4
EN61000-4-11, level 4
Shock: IEC 60068-2-27 PASS
Free Fall: IEC 60068-2-32 PASS
Vibration: IEC 60068-2-6 PASS
Warranty: 5 years
