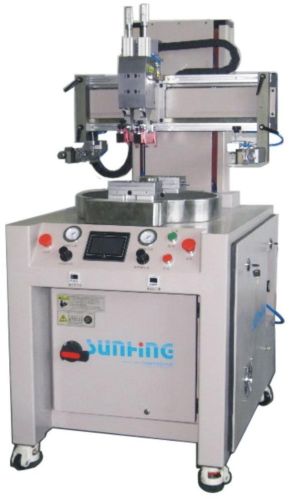

2 Seats Screen Printing Machine - (sp-r18)

scope：
Be used for screen printing of lens,acrylic,pc flat tablet lens;
crstal glass substrate transparent printing;
small electronic products plastic lens and covers printing;
mobile outter covering,mobile presskey
function characteristics：
1.up and down was drived by cnc motor and worm reducer,leaded by high precision drect line slideway,in order to be convenient to adjust electronic screen distance,move stably withou attack,duplicated printing accuracy is high.
2.adopt cnc motor drive matched direct line slideway during ink scraping/return, in order to make sure that printing is stable and even and course is accurate;
3.the newest printing head,adopts double slideway,is adjusted conveniently,operate accurately and durably
4.screens is clipped pneumaticly,loaded conveniently.two arms can be slided between left and right of crossbeam,aluminum frame size can be changed conveniently;
5.controlled by PLC and human-computer interface,function is versatile,meet cnc,standarization,humanization demand;
6.set up with double emergency stop switch,breakdown displays automaticly,system reset safely,touch safety pole can be stopped all of a sudden.human body guard is complete,all machine meets european and American safety standard.
7.rotating double working table,up and down material during printing,greatly improve printing speed,working table duplicated location accuracy is up to ±0.01MM
specification parameters
model SP-R18
turntable platform diameter（mm） ∮440×16
max printing size（mm） 150*180
max screen frame size（mm） 400*550
printing thickness（mm） 0-25
max printing speed（p/h） 1500
location accuracy（mm） ±0.01
power（v-Hz） 220/50
air comsumption（L/T） 2.5
electricity（kw/h） 0.5
machine size （L*W*H）（mm） 900*720*1500
machine weight（kg） 420
