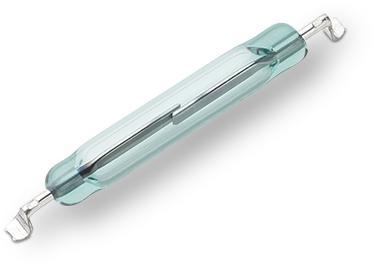

2 Surface Mount Reed Switch

The MLSM-3 Reed Switch is a miniature, surface mounting, normally open
switch with a 15.24mm long x 2.54mm diameter (0.600” x 0.100”) glass
envelope, and capable of switching 200Vdc at 20W with close differential (CD)
characteristics. This reed switch is a surface mount version of the MLRR-3.
It has high insulation resistance of 1010 ohms minimum and contact resistance Surface mount, miniature size,
normally open switch
• Available sensitivity 17-38 AT
• Capable of switching 200Vdc or 1A
at up to 20W
less than 100 milli-ohms. It can handle light inductive loads with no
suppression circuitry. Close differential AT between PI
and DO value
• Maximum switched current of
1.0Amps
