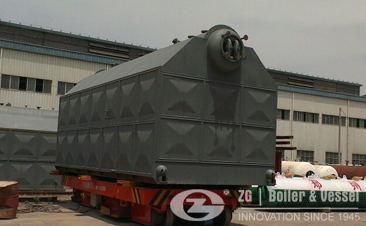

2 Tph Coal Horizontal Steam Boiler

China boiler DZL2-1.0-AII.P single-drum horizontal packaged traveling grate industrial steam boiler is a three-pass water-fire tube boiler, whose rated steam output is 2th, whose rated steam pressure is 1.0MPa, rated steam temperature 184°C, burning class II bituminous coal.
The two sides of DZL2-1.0-AII.P industrial steam boiler is equipped with water cooling wall, forming the boiler's furnace and convection gas flue and the inner boiler drum is equipped with single-return corrugated tube. The coverage rate of the front arch and back arch reach 77.3%, beneficial for combustion of fuel with low volatile matter.
The large-size chain grate is adopted in order to realize automatic combustion. The ID fan and FD fan is adopted to realize mechanical ventilation and the slag machine is adopted to realize mechanical slag-out.
With complete control monitors, running of the boiler is safe and reliable. This DZL2-1.0-AII.P industrial steam boiler has compact structure and small volume and leave the factory in packaged form. When the boiler arrives at the site, the boiler can start running just after the feeding machine, slag remover, valves, pipes are installed. So DZL2-1.0-AII.P industrial steam boiler has the advantages of convenient installation, short installation cycle and less basic construction investment.
