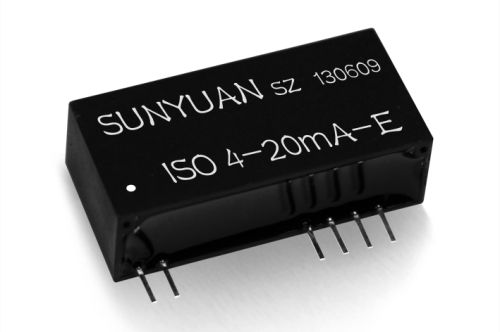

2-wire 4-20mA To 4-20mA 1-5V Passive I/V Conversion Isolation Transmitter

2-wire passive i/v conversion isolation transmitter

2-wire passive 4-20ma to voltage signal isolation converter

2-wire 4-20ma to voltage transmitter features:

>> high efficient signal loop stealing technology, external power supply is not required.

>> 2-wire 4-20ma standard analog signal input,

  0-2.5v/0-3.3v/0-5v/1-5v, etc standard voltage  signal output.

>> extra low input impedance, meet the requirements that when input is 20ma the voltage drop ≤9v.

>> accuracy grade: 0.1, 0.2, 0.5

>> high linearity in full measuring range, non-linearity error grade > 3000vdc isolation between input and output.

>> industrial grade temperature range: -25 ~ +70 ℃

>>small size standard sip 7pin, ul94v-0 flame-retardant package.

2-wire 4-20ma to voltage transmitter applications:

>>sensor 4-20ma signal acquisition and conversion.

>>industrial site signal acquisition and long-distance transmission.

>> analog signal conversion and data acquisition.

>>sensors’ or meters’ signal receiving and transmission.

>>plc, dcs analog signal acquisition and conversion.

>>power control, medical equipment monitoring.

>> 4-20ma current signal to voltage signal conversion: 1-in1-out, 2-in 2-out, 3-in 3-out
